Overview

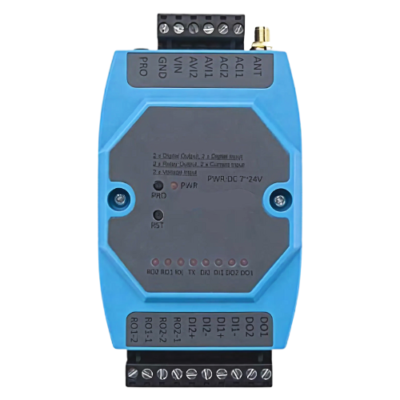

The Inventory Master’s LoRaWAN IO controller with multiple interfaces is a long-range LoRaWAN I/O solution designed for seamless installation and data transmission. It features multiple I/O interfaces, including analog current and voltage inputs, relay outputs, and digital I/O. Using LoRa wireless technology, it ensures ultra-long-range communication with high interference immunity and low power consumption. Ideal for professional wireless sensor networks, it supports applications like irrigation, smart metering, and building automation.
Features
- LoRa wireless chip
- AT Commands to change parameters
- Optional LoRa protocol
Technical Specifications
| Chipset | SX1276/78 LoRa Wireless Chip |
| Protocol | LoRaWAN Class A and Class C |
| Frequency | CN 470 MHz or EU 433 MHz or KR 920 MHz or US 915 MHz or EU 868 MHz or AS 923 MHz or AU 915 MHz |
| Digital Inputs | 2 x bi-directional digital input |
| Digital Outputs | 2 x digital output |
| Relay Outputs | 2 x relay output (5 A at AC 250 V or DC 30 V) |
| Analog Inputs | 2 x 0 mA to 20 mA (resolution: 0.01 mA), 2 x 0 V to 30 V (resolution: 0.01 mA) |
| Power Input | 0 V to 24 V |
| Device Weight | 6.0 oz (170 g) |
| Dimensions | 0.57 in x 0.3 in x 0.2 in (14.5 mm x 8 mm x 5 mm) |
