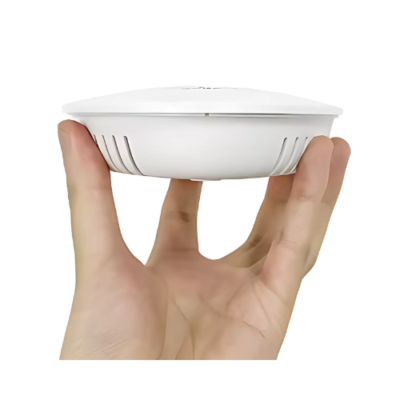

Name: LoRaWAN IoT Gateway for Positioning and Navigation – The Inventory Master - The Inventory Master
SKU: TIMLMGH-124

Explore IoT connectivity with LoRaWAN gateway. AES128 encryption, geo-fence support, CE certified. Ideal for navigation and mesh networks.

SKU: TIMLMGH-124 Category: LoRaWAN networks

Technical Specifications

Chipset	SX1276
Application	Positioning and Navigation
Bluetooth Protocol	Bluetooth 5.0
LoRaWAN Protocol	LoRaWAN 1.0.2B
LoRa Fastest Communication Frequency	5 s
LoRa Sensitivity	-139 dBm @ SF12, BW 125 kHz, 434 MHz or 470 MHz -137 dBm @ SF12, BW 125 kHz, 868 MHz or 915 MHz
Transmission Capacity	100 beacon messages can be received within 1 s, Maximum of 15 beacon messages can be sent in one package
Geo-Fence	Supported
Encryption	AES128
Power Supply Mode	5 V/1 A
Connect to Power Source	Yes
Certification	CE, FCC, RCM
Operating Temperature	-40 °F to 185 °F (-40 °C to 85 °C)
Storage Temperature	-58 °F to 185 °F (-50 °C to 85 °C)
Operating Humidity	5% to 95%
Dimension	4.72 in × 4.72 in × 1.22 in (12 cm × 12 cm × 3.1 cm)
