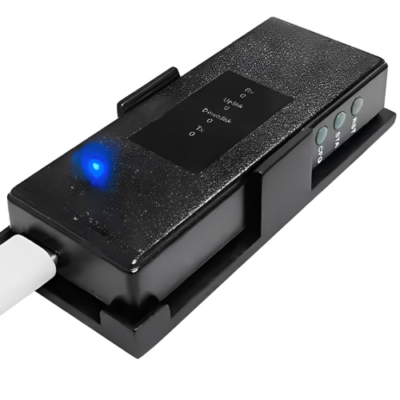

LoRaWAN Low Power Dual Channel Gateway – The Inventory Master

Name: LoRaWAN Low Power Dual Channel Gateway – The Inventory Master - The Inventory Master
SKU: TIMMLG-204

Compact LoRaWAN dual channel gateway with low power use, ESP32, SX1276 chip, USB-C, and wide band support for Class A & C protocol.

SKU: TIMMLG-204 Category: LoRaWAN networks

Features

LoRa Baseband Chip	ESP32
LoRa RF Chip	SX1276
Working Band (Optional)	EU 433 MHz, CN 470 MHz to 510 MHz, US 902 MHz to 928 MHz
LoRa Maximum Output Power	18 dB ± 1 dB
Interface	USB type-c x 1
USB to Serial Hip	CP2102
Power Supply	USB power supply (≥ 500 mA), 4.8 V min, 5 V typical, 6 V max
Power Consumption	2 channels listening (receive mode) LoRa 10 dB output LoRa 12 dB output LoRa 15 dB output LoRa 20 dB output
Demodulator	LoRa demodulator
Spectrum Factor	SF 7 to SF 12 for each channel is optional
Operating Temperature	-40 °F to 176 °F (- 40 °C to 80 °C)
Size	2.95 in x 1.18 in x 0.51 in (75 mm x 30 mm x 13 mm)
