Overview

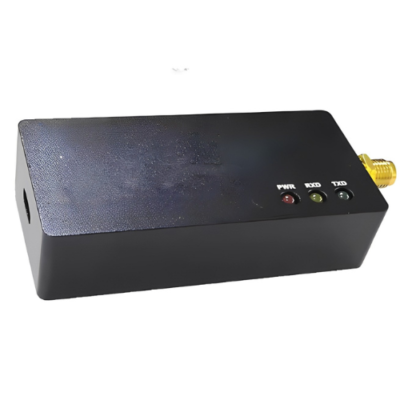

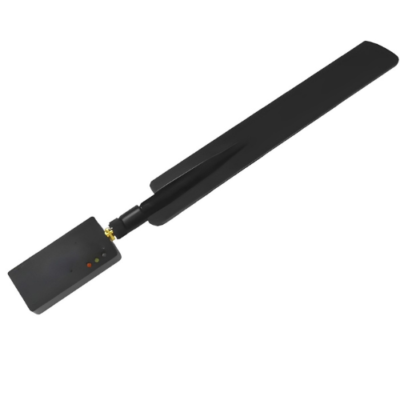

The Inventory Master’s LoRaWAN multi-class gateway with ADR & aluminum housing is a picocell LoRa gateway based SX1308 baseband chip, it must work with other operating system (Windows or Linux), when we were design it, we define this product positioning is convenient user authentication LoRa communication scheme. It supports both SPI and USB interface and can work with Windows or Linux. With well-designed structure, the great heat from SX1308 can be transferred to the Aluminum shell, making it works more stable than other products of the same type.
Features
- Dynamic data-rate adaptation (ADR)
- Support LoRaWAN class A, class B and class C
- Aluminum housing
Technical Specifications
| LoRa Baseband Chip | SX1308 |
| LoRa RF Chip | SX1255 (EU_433, CN_470_510); SX1257 (EU_863_870, US_902_928) |
| Working Band (Optional) | EU 433 MHz, CN 470 MHz to 510 MHz, EU 863 MHz to 870 MHz, US 902 MHz to 928 MHz |
| LoRa Maximum Output Power | 20 dB ± 1 dB |
| Receiving Sensitivity | -142.5 dBm at 300 bps |
| Interface | Micro USB x 1; SPI x 1; LoRa Antenna (SMA) x 1 |
| USB to SPI Bridge Chip | STM32F401CEU6 |
| Power Supply | USB power supply (≥ 500 mA), 4.8 V min, 5 V typical, 6 V max |
| 2.54 x 4 x 2 header power supply (≥ 500 mA), 4.8 V min, 5 V typical, 6 V max | |
| Power Consumption | 8 channels listening (receive mode), 153 mA typical LoRa 10 dB output, 254 mA typical LoRa 12 dB output, 258 mA typical LoRa 15 dB output, 259 mA typical LoRa 20 dB output, 284 mA typical |
| Demodulator | 49 x LoRa and 1 x (G) FSK |
| Spectrum Factor | SF 7 to SF 12 for each channel is optional |
| Communication Interface | SPI or USB |
| Operating Temperature | -40 °F to 176 °F (- 40 °C to 80 °C) |
| Size | 2.6 (0.39) in x 1.18 in x 0.59 in (66 (+10) mm x 30 mm x 15 mm) |
