Overview

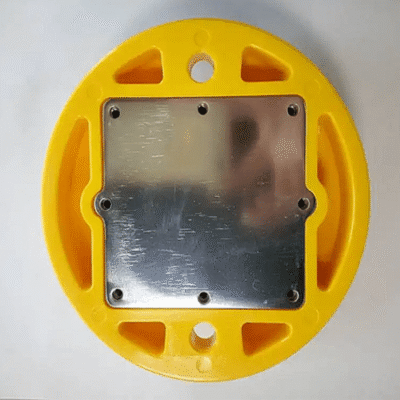

The Inventory Master LoRa WAN parking sensors use an anisotropic magnet resistive sensor to monitor changes in the magnetic field on the parking space and check whether the parking space is occupied or free. It is connected to the gateway or network coordinator by various transmission methods such as LORAWAN and NB-IOT, and then transmitted to the server through 4G or Ethernet.
Technical Specifications
| Frequency | 433 MHz, 470 MHz, 868 MHz, 915 MHz, 923 MHZ |
| B 1, B 3, B 5, B 8, B 20 | |
| Equipment Type | Class A |
| Antenna Interface | Built-in FPC antenna |
| Configuring Serial Port | 9600, n, 8, 1 |
| Voltage | ER 26500 (3.6 V, 9 AH or 19 AH) Lithium Battery |
| Battery Life | 4 to 5 years |
| Maximum Working Current | <300 mA |
| Sampling Rate | 0.05 HZ |
| Protection level | IP 68 |
| Shell Material | ABS |
| Working Temperature | -4 °F to 158 °F (-20 ℃ to 70 ℃) |
| Storage temperature | -40 °F to 185 °F (-40 ℃ to 85 ℃) |
| Dimension | 7 in x 1.7 in (178 mm x 42 mm) (surface type) 3.4 in x 4.4 in (86 mm x 111 mm) (buried type) |
| Weight | 1.7 lb (750 g) (surface type) 1 lb (455 g) (buried type) |
