Technical Specifications
| Type | Remote Control |
| Max Load Power | 500 W |
| Connection Mode | OTAA |
| Material | Plastic |

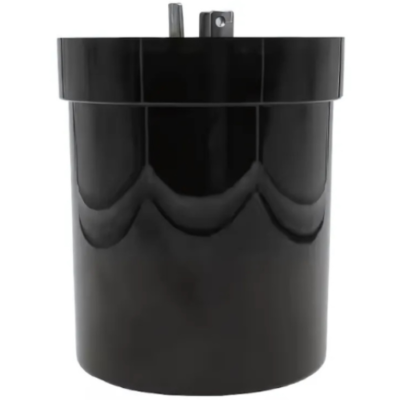

| Function | Street light controller with LoRa communication |
| Usage | Lighting |
| Certificates | CE, FCC, CB |
| EMC | EN55015, EN55022 |
| Range | 1.24 mile to 3.1 mile (2 km to 5 km) |
| Dimming Type | 0 V to 10 V/PWM/DALI |
| Output | Single |
| Main IC | SX1276 RP2040 |
| LoRaWAN Frequency | EU433, CN470, EU868, US915, AS923, AU915, KR920, IN865 |
| Input Voltage | 100 V AC to 480 V AC |
| Rated Voltage | 480 V AC |
| Input Frequency | 47 Hz to 63 Hz |
| Max Current | 4 A |
| Standby Power | <2 W |
| Dimming Output | 0 V to 10 V @ 27 mA (max) |
| Measurement Accuracy | <1.5% |
| Harmonic Content | <10% |
| Overload Protection | Yes |
| Short Circuit Protection | No |
| Overheating Protection | Yes |
| MTBF | >200 khours |
| Waterproof | IP66 |
| Operating Temperature | -40 °F to 140 °F (-40 °C to 60 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Case Max. Temperature | 176 °F (80 °C) |
| Size Packaging | 3.54 in × 3.54 in × 4.52 in (9 cm × 9 cm × 11.5 cm) |
| Weight | 0.66 lb (0.3 kg) |
