Overview

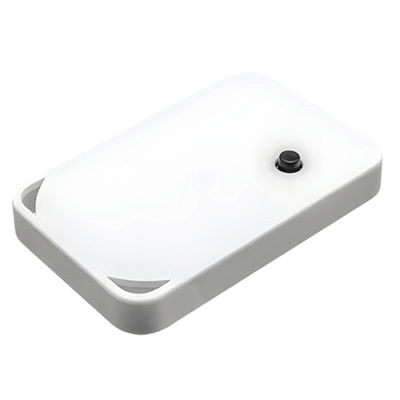

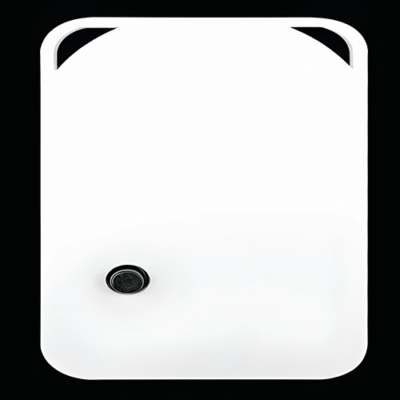

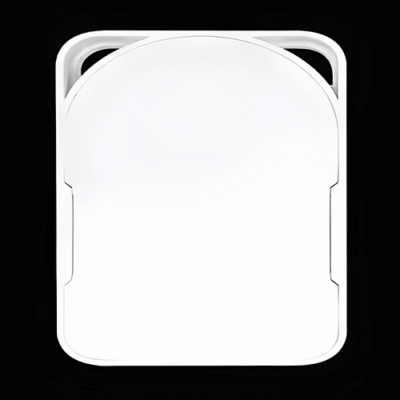

The Inventory Master bluetooth beacon push button is an asset label Bluetooth beacon with a function to prevent disassembly. Its broadcast protocol conforms to Bluetooth BLE broadcast iBeacon (Apple) protocol. It is usually installed in a suitable location, periodically broadcast to its surroundings, so that other Bluetooth devices such as Bluetooth gateways can scan its broadcast content and calculate the location information. It is usually not connected by other BLE host devices, but can be connected through mobile APP, and modify its broadcast parameters and other contents.
Features
- Low power consumption
- prevent the disassembly
- Flexible application
- Easy to deploy
- Advertise range up to 70 meters
Technical Specification
| Application | IOT, navigation, positioning |
| Battery | CR 2032 |
| Wireless Standards | BLE 4.2 |
| Frequency Range | 2400 MHz to 2483.5 MHz |
| Data Rates | 1 Mbps, (Bluetooth 4.2) |
| Wireless Security | AES HW Encryption |
| Sensitivity | -94 dBm at 1 Mbps BLE |
| Operating Temperature | -22 ℉ to 140 ℉ (-30 ℃ to 60 ℃) |
| Dimension | 1.5 in x 0.9 in x 0.2 in (37.3 mm x 23.4 mm x 5.1 mm) |
