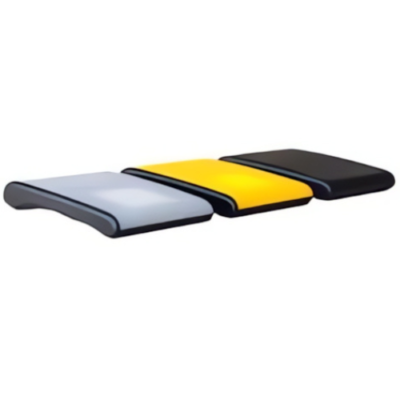

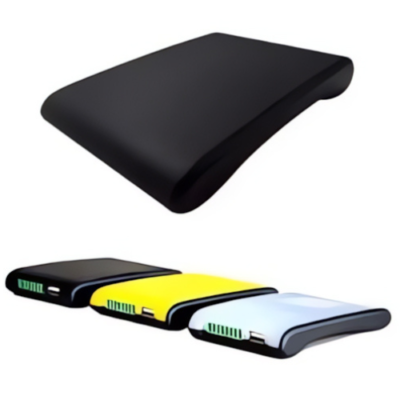

Low Power Mini Desktop UHF RFID Reader & Writer – The Inventory Master

Name: Low Power Mini Desktop UHF RFID Reader & Writer – The Inventory Master - The Inventory Master
SKU: TIMURR-126

Energy-efficient UHF RFID reader or writer for fixed desktop use. Ideal for inventory, access control, and asset tracking applications.

SKU: TIMURR-126 Category: Bluetooth Low Energy (BLE)

Technical Specifications

Frequency	860 MHz to 960 MHz
Protocol	ISO 18000 to 6C
Standby Mode Current	<80mA (EN high level)
Operating Current	180mA @ 3.5V (26 dBm Output, 77° F (25° C)). 110mA @ 3.5 V (18 dBm Output, 77° F (25° C))
Operating Temperature	-4° F to 158 °F (-20° C to 70° C)
Air Interface Protocol	EPC global UHF Class 1 Gen 2 or ISO 18000-6C or ISO 18000 to 6B
Spectrum Range	860 MHz to 960 MHz
Output Power	0 dBm to 26 dBm
Peak Inventory Speed	>50 tags per sec
Baud Rate	115200 bps (The default and recommended) 38400 bps
Host Communication	USB 2.0 RS-232 Wiegand 26 Wiegand 34
