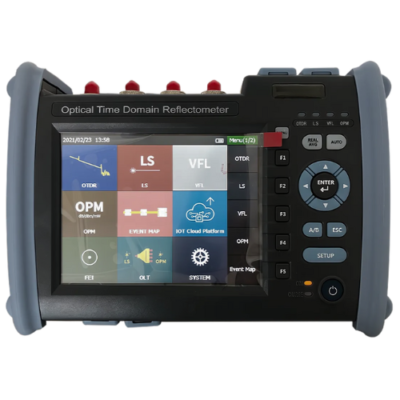

Features
- Touchscreen LCD Display
- Long 160km Range
- Integrated VFL Function
- Lightweight Compact Design
- USB Port Connectivity
- Multi-Wavelength Support
- High-Precision Measurements
- Durable Build Quality
Technical Specifications
| Optical Output Connector | FC-PC (Standard), APC (Optional) |
| Display Screen | 5.6-inch Color LCD (Touchscreen) |
| Port | USB, Mini-USB, 10M/100M Ethernet |
| VFL | Yes |
| OPM | Yes |
| No. of Fibers | 12 |
| Use | FTTH |
| Pulse Width Options | 3ns to 20000ns |
| Ranging Accuracy | ± (0.75m + Sample interval + 0.005% x Test distance) |
| Loss Accuracy | ±0.05dB/dB |
| Sample Points | 16k-256k |
| Reflection Accuracy | ±3dB |
| File Format | SOR Standard File Format |
| Loss Analysis | 4-point method / 5-point method |
| Laser Safety Level | Class II |
| Refresh Rate | 3Hz (Typical) |
| Data Storage | Internal: 100MB (<3000 curves), External: 4GB |
| Connector | Universal Joint: FC/SC/ST |
| Test Scope | -50dBm to +26dBm |
| Uncertainty | ±5% |
| Calibration Wavelengths | 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm |
| Laser Type | FP-LD |
| Wavelength Range | 800nm to 1700nm |
| Output Power | >-5dBm |
| Stability | CW, ±0.5dB/15min (After 15 min preheating) |
| Power Supply | AC/DC Adapter: 100V-240V, Li-Battery: 7.4V, 5200mAh |
| Relative Humidity | 0% to 95 %, non-condensing |
| Functions of Host | PON OTDR/OPM/VFL/LS/Event Map/Fiber End Detection/Optical Loss Test |
| Range | 99.42 mi (160 km) |
| Sample Resolution | 0.164 ft to 52.493 ft (0.05 m to 16 m) |
| Operating Temperature | 14°F to 122°F (-10°C to +50°C) |
| Storage Temperature | -40°F to 158°F (-40°C to +70°C) |
| Dimensions | 8.94 in x 6.30 in x 2.76 in (22.7 cm x 16 cm x 7 cm) |
| Weight | 2.65 lb. (≤1.2kg) |
