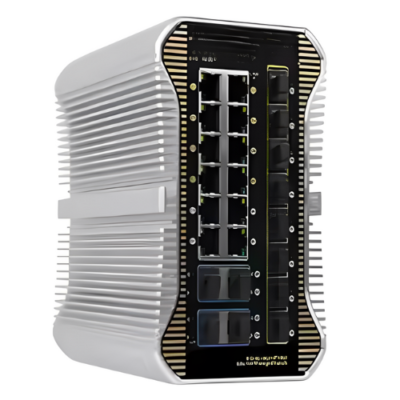

Technical Specifications
| Fixed Port | Power off alarm switch port (FAULT), 1 x RS232 console port (115200, N, 8,1), 4 x 1/10G uplink SFP+ fiber ports (Data), 8*10/100/1000Base-T PoE ports, (Data/Power), 4*10/100/1000Base-T uplink RJ45 ports (Data), 8*100/1000Base-X uplink SFP Fiber ports (Data), 2 set of V+, V- redundant DC power ports (6 Pin Phoenix terminal) |
| Ethernet Port | Port 1-8 support 10/100/1000Base-T, autosensing, full/ half duplex MDI/ MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meters), 100BASE-TX: Cat5 or later UTP (≤100 meters), 1000BASE-T: Cat5e or later UTP (≤100 meters) |
| Optical Fiber Port | 1/10G SFP+ optical fiber port, default no includes optical module (optional single mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
| Optical Cable / Distance | Multi-mode: 850nm/ 0-500m, 850nm/ 0-300m (10G), Single-mode: 1310nm/ 0 miles to 24.85 miles (0 km to 40 km), 1550nm/0 miles to 74.56 miles (0 km to 120 km) |
| Network Management Type | L2+ |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3ae 10GBase-LR/SR, IEEE802.3x |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 176Gbps (non-blocking) |
| Forwarding Rate@64byte | 89.28 Mpps |
| CPU | 500 MHz |
| DRAM | 2G |
| FLASH | 128M |
| MAC | 32 K |
| Buffer Memory | 32M |
| Jumbo Frame | 9.6 K |
| LED Indicator | Power: PWR (Green), System: SYS (Green), Fiber Port: L/A (Green), PoE: PoE (green), Network: Link (Yellow) |
| Reset Switch | Yes, press and hold the switch for 10 seconds and release it to restore the factory settings |
| PoE Port | Port 1-8 |
| PoE Management | PoE power supply total power limit configuration, Power delay start, Port PoE output priority configuration, PoE work and time scheduling, Port PoE working status display, Port PoE output power distribution, PoE on/off, af/at power distribution |
| Power Supply Pin | 1/2(+)3/6 (-) |
| Max Power Per Port | 30W, IEEE 802.3 af/at |
| Power Consumption | Standby<15W, Full load af<120W, at<240W |
| Working Voltage | DC48 V to 57V, 6 Pin industrial Phoenix terminal, support anti-reverse protection. |
| Power Supply | No, optional 48V/120W or 48V/240W industrial power supply |
| Installation | Desktop, 1.378 in(3.5 cm) DIN Rail |
| Lightning Protection | Protection level: IP40, Lightning protection: 6KV 8/20us, IEC61000-4-3 (RS):10V/m (80 to 1000MHz), FCC Part 15/CISPR22 (EN55022): Class B, IEC61000-6-2 (Common Industrial Standard), IEC61000-4-9 (Pulsed magnet field): 1000A/m, IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz, IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV, IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV, IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s, IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge, IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz), IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m, 1s-3s, IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
| Mechanical Properties | IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
| Interface | Port temperature protection settings IEEE802.3x flow control (Full duplex) Broadcast storm suppression based on port rate, Port EEE Green Ethernet energy-saving configuration, Limit the rate of packet traffic on incoming and outgoing ports, mini granularity is 64Kbps |
| Layer 3 Features | ARP protocol max 1024 entries, Static route/default route max 128 entries L2+ network management function, IPV4/IPV6 dual-stack management. Layer 3 routing forwarding, communication between different network segments and different VLAN |
| VLAN | Port configuration of Access, Trunk, Hybrid. VLAN based on MAC, VLAN based on the protocol, (4K) VLAN based on port, IEEE802.1q, Voice VLAN, QinQ configuration |
| Port Aggregation | LACP, Static aggregation, Max 12 aggregation groups and max 8 ports per group. |
| Spanning Tree | STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
| Industrial Ring Network Protocol | G.8032 (ERPS) ring network recovery time less than 20ms, 250 Ring at most, Max 250 devices per ring. |
| Multicast | MLD Snooping, Multicast VLAN, User quick log out, IGMP Snooping v1/v2/v3 and 1024 multicast groups at most |
| Port Mirroring | Bidirectional data mirroring based on port |
| QoS | Queue Scheduling Algorithm (SP, WRR, SP+WRR), Flow-based Rate Limiting, Stream based redirection, Flow-based Packet Filtering, 8*Output queues of each port, 802.1p/ DSCP priority mapping, Diff-Serv QoS, Priority Mark/ Remark |
| ACL | ACL distribution based on port and VLAN L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc. |
| Security | Port based IEEE802.1X authentication SSL guarantees data transmission security Quad binding function of IP+MAC+VLAN+ports MAC address learning limit, MAC address black hole, Anti DoS attack, Port broadcast message suppression, Hierarchical user management and password protection SSH 2.0 provides a secure encrypted channel for user login, Host data backup mechanism, ARP intrusion detection function, Port isolation, IP Source Guard, ARP message speed limit function, IP Source Guard function, AAA & RADIUS & TACACS+ certification |
| DHCP | DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay |
| Management | Web network management (https), Link Layer Discovery Protocol (LLDP), Viewing CPU Instant Utilization Status, NTP clock, one click restores, SNMP V1/V2/V3 Cable status check, Ping detection, System work log, NMS platform cluster management (LLDP+SNMP), Console/AUX Modem/Telnet/CLI command line configuration, FTP, TFTP, Xmodem, SFTP file upload and download management |
| System | Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable, TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable |
| Private Mold | Yes |
| Ports | 24 |
| Function | LACP, POE, QoS, SNMP, VLAN Support |
| Operation TEMP/ Humidity | -40°F to 176°F (-40°C to +80 °C), 5% to 90% RH Noncondensing |
| Storage TEMP/ Humidity | -40°F to 185°F (-40 °C to +85°C), 5% to 95% RH Noncondensing |
| Dimension (L*W*H) | 6.53 in × 5.91 in × 3.54 in (16.6 cm × 15 cm × 9 cm) |
