Overview

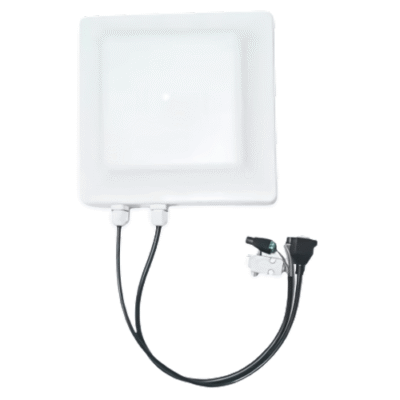

The Inventory Master Medium Range Integrated Reader for Access Control and Parking System is a high-performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on efficient DSP algorithm, it supports fast tag read and write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Features
- Self-intellectual property
- ISO18000-6C support
- Frequencies: 865 MHz to 868 MHz, 902 MHz to 928 MHz
- FHSS or Fixed Frequency
- RF output: up to 30 dBm
- 7 dBi circular antenna, up to 26.25 ft (8 m) range
- Modes: active, answer, trigger, password
- Low power, +12 V DC
- Interfaces: RS232, RS485, Wiegand, Relay, USB, RJ45, Wi-Fi, POE, 4G
- Optional relay control
- Modbus support (RS232, RS485, RJ45)
Technical Specifications
| Frequency | 902 MHz to 928 MHz or 860 MHz to 868 MHz (frequency customization optional) |
| Read Type | ISO18000-6C (EPC Gen2) |
| Ant. | 7 dBi circular polarization antenna |
| RF Power | 0 dBm to 30 dBm |
| Reading Prompt | Buzzer |
| Working Voltage | DC 9 V to 24 V, 12 W |
| Work Mode | Active mode, Answer mode, Trigger mod, Password mode |
| Communication | RS232, RS485, WG26, WG34, Trigger, Relay (Optional), RJ45(Optional), WIFI(Optional), POE(Optional), USB(Optional),4G(Optional) |
| Net | RJ45 supports TCP Client or Server, Modbus, DNS, DHCP. WIFI supports TCP Client. 4G supports TCP Client. HTTP Protocol (Optional), MQTT(Optional), LLRP (Optional) |
| Shell Material | ABS |
| Color | Gray White |
| Humidity | 5 % to 95 % RH, Non-condensing |
| Waterproof Rank | IP65 |
| Read Rate | 200 cnt per s |
| Read Distance | 0 ft to 26.25 ft (0 m to 8 m) |
| Write Distance | 0 ft to 13.12 ft (0 m to 4m) |
| Operation Temperature | -4 °F to 140 °F (-20 °C to +60 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to +85 °C) |
| Dimensions | 8.66 in x 8.66 in x 2.36 in (220 mm x 220 mm x 60 mm) |
| Net Weight | 4.41 lb (2.0 kg) |
