Overview

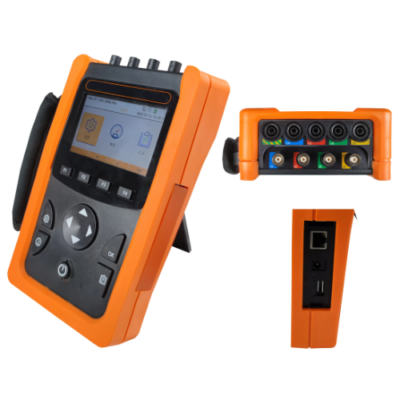

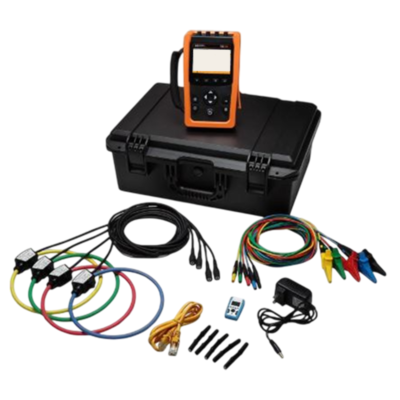

The Inventory Master mini optimized energy electric ethernet analyzer- three phase power quality analyzer, externally connected with open type Rogowski coil or voltage type CT, it can realize none dismantling wire test, simplify test steps, save construction cost, and is more convenient for engineering test as well as the inspection and maintenance of distribution system. Support systems of single-phase and three-phase. It can measure multiple electrical parameters such as current, voltage, power factor, power, energy, and power quality parameters including harmonic, unbalance degree, voltage swell and voltage dip, etc. In addition to the measurement function, The Inventory Master mini optimized energy electric ethernet analyzer is equipped with various records, such as waveform records and programmable interval measurement value records. To store and record data, it is an internally embedded 32 GB memory card. With standard configuration of RJ45 Ethernet communication interface, through standard Modbus TCP protocol, it is compatible with various configuration systems and could transmit the electrical parameters collected by the front end to the system data center in real time.
Technical Specifications
| Phase | Three phases |
| Measuring Energy Range | 0 GWh to 999.9 GWh |
| Output Voltage | 0 VAC to 600 VAC |
| Display type | Analog and Digital |
| Accuracy class | Class S |
| Product name | 3 Phase Power Quality Analyzer |
| Application | Energy Consumption Monitoring |
| Communication | Modbus TCP or RJ45 Ethernet |
| Current transformer | 333 mV current clamp |
| Current range | 0 A to 18000 A |
| Voltage range | 0 VAC to 600 VAC |
| Function | Graphs, Waveform, Power quality analysis |
| Frequency | 45 Hz to 65 Hz |
| Type | Handheld Three phase power quality analyzer |
| Application field | Power analysis, Power measurement, Power quality analysis |
| Wiring system | 3P4W_4CT 3P4W_3CT 3P3W_3CT 3P3W_2CT 1P2w |
| Current sensor | Rogowski coil Voltage output current clamp, 333 mV CTs |
| Voltage access | Direct access Connected through voltage transformer |
| Storage Type | TF card |
| Storage Capacity | 32GB |
| Data export | U disk export (U disk file is FAT32 system) |
| Communication Interface | RJ45 Ethernet |
| Communication Protocol | Modbus TCP |
| Power Supply | |
| Power Supply | 5 VDC, 2A Adapter |
| Battery | Rechargeable lithium battery, specification 18650, 2 pcs, capacity about 4000mAh |
| Battery purely working time | ≥ 6h |
| Battery charging time (off state) | ≤ 5h |
| Real-time measurement data | |
| Voltage | Phase voltage: Phase ABC N phase to ground voltage Line voltage: UAB, UBC, UCA Voltage peak coefficient: Phase ABC Voltage peak: Phase ABC |
| Current | Phase current: Phase ABCN Current peak coefficient: Phase ABC K Factor: Phase ABC |
| Frequency | Line frequency |
| Power | Active power: Phase ABC and total Reactive power: Phase ABC and total Apparent power: Phase ABC and total |
| Power factor | Phase ABC and total |
| Fundamental harmonic power factor | Phase ABC and total |
| Electrical energy | Active Energy: Phase ABC and total (import or export) Reactive energy: Phase ABC and total (import or export) Apparent Energy: Phase ABC and total CO2 emissions |
| Harmonic measurement data | |
| Voltage harmonics | THD (Total harmonic percentage), TOHD (Odd total harmonic percentage), TEHD (Even total harmonic percentage), phase ABC 1st to 50th harmonic percentage, phase ABC 1st to 50th harmonic voltage value |
| Current harmonics | THD (Total harmonic percentage), TOHD (Odd total harmonic percentage), TEHD (Even total harmonic percentage), phase ABC 1st to 50th harmonic percentage, phase ABC 1st to 50th harmonic current value |
| Voltage and current Waveform | |
| Phase angle | Phase ABC |
| Unbalance | Voltage unbalance, current unbalance |
| Power demand and peak demand | Phase ABC active power and total power, phase ABC reactive power and total power, phase ABC apparent power and total power |
| Current demand and peak demand | Phase ABC |
| Voltage and Current harmonic data record | Voltage and current harmonics (Total harmonic distortion THD, Odd total harmonic TOHD, even total harmonic TEHD, 1st to 50th Harmonic percentage and voltage or current value) |
| Event recorded data | Event type Start time Duration Amplitude value |
| Waveform recording | Phase ABC voltage waveform and current waveform |
| Data storage format | CSV |
| Operating Temperature | -4 ⁰F to 131 ⁰F (-20 ℃ to 55 ℃) |
| Dimensions | 8.46 in x 5.12 in x 2.36 in (21.5 cm x 13 cm x 6 cm) |
