Overview

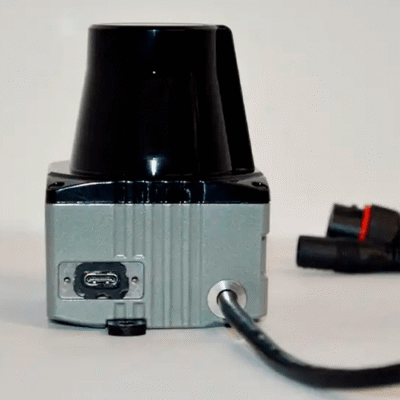

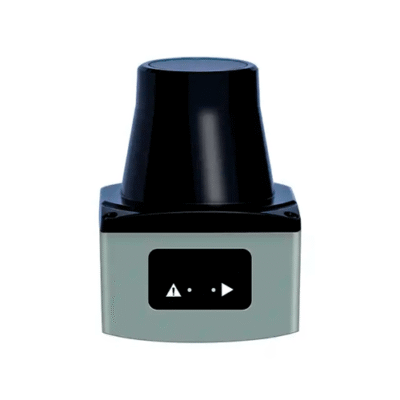

The Inventory Master 2D mobile LiDAR sensor is a single-line LiDAR developed for medium and low-speed scenarios. The industrial design is exquisite and compact, making the product small in size, light in weight, and high in performance. It supports ultra-high frequency sampling and optional angular resolution and achieves zero blind spots within the detection range.
Technical Specifications
| Scanning Principle | Mechanical rotation |
| Range Principle | TOF |
| Horizontal FOV | 270° |
| Distance resolution | 0.39 in (1 cm) |
| Data output format | RJ 45 or USB |
| Time source | Internal timestamp |
| Data transmission | UDP or IP (100 Mbps) |
| Data output | Distance, angle, echo intensity, time |
| Horizontal resolution | 0.2° (10 Hz) 0.5° (20 Hz) |
| Range accuracy | ±0.8 in (2 cm) |
| Protection distance | ≥49.2 ft (15 m) 70% reflectivity ≥32.8 ft (10 m) 10% reflectivity |
| Power consumption | ≤2.5W |
| Operating voltage | 6 V to 36 V |
| Environmental protection | IP 65 |
| Laser class | Class 1 eye safe |
| Wavelength | 940 nm |
| Operating temperature | -13 °F to 140 °F (-25 °C to 60 °C) |
| Storage temperature | -40 °F to 167 °F (-40 °C to 75 °C) |
| Dimensions | 2.4 in x 2.4 in x 3.1 in (60 mm x 60 mm x 80 mm) |
| Weight | 0.35 lb (160 g) |
