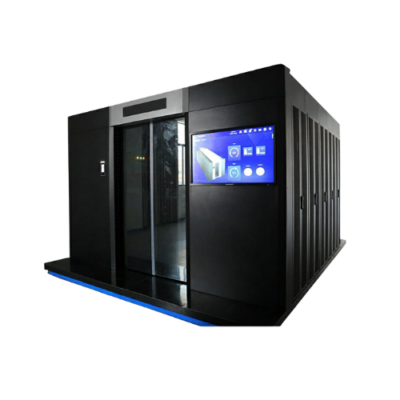

| Module Type | Micro Module |
| Cabinets per Module | Single channel ≤ 24; Double channel ≤ 48 |
| Power Supply | 208V / 380V / 400V / 415V DC/AC, 50 / 60 Hz, 3 Ph + N + PE |
| Max IT Load per Module | 125 kW (integrated UPS) / 145 kW (integrated PDC) / 235 kW (precision PDC) |
| Cable Routing | Routed in/out through the top of cabinets |
| Installation | Raised floor |
| Protection Level | IP20 |
| Cabinet Capacity | 42U / 47U |
| Cabinet Dimensions (H × W × D) | 2000 × 600/800 × 1200 mm → 78.74 × 23.62/31.50 × 47.24 in2000 × 600/800 × 1100 mm → 78.74 × 23.62/31.50 × 43.31 in2200 × 600/800 × 1200 mm → 86.61 × 23.62/31.50 × 47.24 in |
| Air Conditioner — Installation | In-row or vertical at one end |
| Refrigeration System | Direct expansion air cooling / chilled water / cooling water |
| Cooling Capacity | Optional |
| In-Row A/C Dimensions (H × W) | 2000 × 300 mm → 78.74 × 11.81 in2000 × 600 mm → 78.74 × 23.62 in |
| In-Row A/C Power Supply | 208V / 380V ~ 415V AC, 50 / 60 Hz, 3 Ph + N + PE |
| Refrigerant | R410A / R407C |
| Integrated UPS — Input Voltage | 208V / 380V / 400V / 415V AC, 50 / 60 Hz, 3 Ph + N + PE |
| Integrated UPS — Input | 250A / 400A MCCB |
| Integrated UPS — Input Power Factor | Full load > 0.99; Half load > 0.98 |
| Integrated UPS — Output Power Factor | 1 |
| Integrated UPS — Rated Capacity | 25 kVA ~ 125 kVA |
| Integrated UPS — Output | IT: 40A/1P × 24 × 2; A/C: 40A or 63A/3P × 8; Lighting: 10A/1P × 3 |
| Integrated UPS — Efficiency | ≥ 96 % |
| Integrated PDC — Input Voltage | 380V / 400V / 415V AC, 50 / 60 Hz, 3 Ph + N + PE |
| Integrated PDC — Input | IT: 160A/250A MCCB; A/C: 160A/250A MCCB |
| Integrated PDC — Rated Input Current | IT: 160A / 250A; A/C: 160A / 250A |
| Integrated PDC — Output | IT: 32A/1P × 2 per cabinet; A/C: 40A or 63A/3P per; Lighting: 10A/1P |
| Precision PDC — Input Voltage | 208V / 380V / 400V / 415V AC, 50 / 60 Hz, 3 Ph + N + PE |
| Precision PDC — Input | 160A / 250A / 400A MCCB |
| Precision PDC — Output | 32A/1P, max 144 routes |
| Smart Bus Bar — Input Voltage | 208V / 380V / 400V / 415V AC, 50 / 60 Hz, 3 Ph + N + PE |
| Smart Bus Bar — Input | 160A / 250A MCCB |
| Smart Bus Bar — Output | 32A/1P |
| Single Channel Dimensions (W × H) | 2200 × 2300 mm → 86.61 × 90.55 in2200 × 2400 mm → 86.61 × 94.49 in |
| Double Channel Dimensions (W × H) | 3200 × 2300 mm → 125.98 × 90.55 in3600 × 2400 mm → 141.73 × 94.49 in |
