Overview

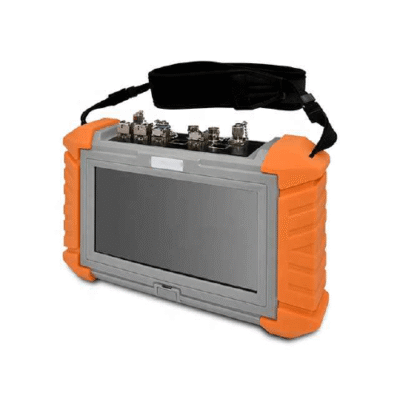

Multi-Functional Ethernet Network Tester with 7-Inch LCD & 10G Support is a multi-functional portable comprehensive test platform integrating E 1, V 35, 10 M or 100 M or 1000 M or 10 G ethernet, optical power meter test and other physical interfaces. It provides rich and powerful data network testing functions, easy and intuitive ▷ operation, dull English display interface, direct display of test and statistical results, easy to carry, for engineering and maintenance personnel to carry out on-site installation, commissioning, and maintenance to save a lot of time, multi-port, multi-functional integrated design, to improve engineering and maintenance efficiency, reduce costs to provide strong support.
Features
- Portable multi-port, multi-functional integrated design
- 7 in (17.78 cm) color touch screen
- Full English display interface, intuitive and convenient operation
- 5000 mAh high-capacity lithium battery
- Test result storage and printing
Technical Specifications
| Display | High resolution 7 in (17.78 cm) color LCD display with LED backlight |
| Storage | Can store and query 1000 test results, support printing |
| Battery Capacity | Intelligent lithium battery 5000 mAh, 12.6 V |
| Endurance Time | 4 hrs |
| Charging Time | 5 hrs |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Working Humidity | 5% to 90% non-condensing |

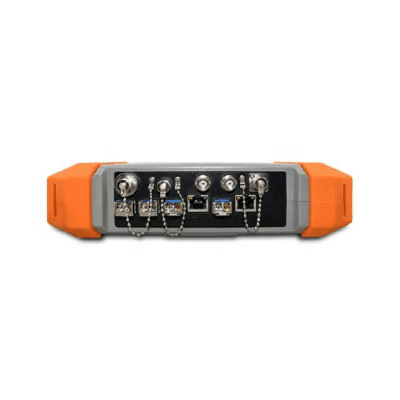

| Test Port | Datacom data interface: V.35 functionality test; El interface: El link with G.703 (E1) Test capability (75 ohm to 120 ohm); Ethernet interface: 10 M or 100 M or 1000 M dual optical gigabit ethernet; Optical power meter interface; OTDR interface |
| Red Light Sourcing Testing | Working wavelength: 650 nm LD; Testing distance: 1.86 mi to 3.10 mi (3 km to 5 km) |
| Optical Power Testing | Test wavelength: 850 nm or 1319 nm or 1550 nm or 1625 nm; Test range: -50 dBm to 26 dBm or -70 dBm to 10 dBm |
| 10 M or 100 M or 1000 M or 10 10 Gigabit Ethernet Testing | Dual optical interface, support 850 nm or 1300 nm or 1310 nm or 1550 nm; High line speed IP ping test; Provide RFC2544 (throughput rate, delay, packet loss rate, back-to-back) function testing; Y.1564 (service configuration test, service performance test) DFTP service test upstream and download stream channel bandwidth; Jitter, error and other tests |
| El or V.3 Functional Testing | Provide El, V.35 ports; Support BERT error feature testing Support frame relay, HDLC, and PPP protocol testing; Support ping and loopback ping test on El and V.35 links; Automatic destination IP address detection (HDLC or PPP or FR) function |
| Weight | 5.51 lb (2.5 kg) |
