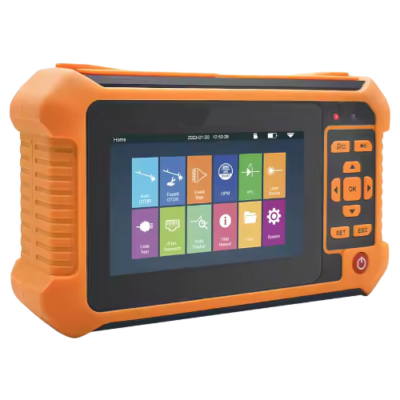

Features
- High Measurement Distance
- Fast Startup Boot
- Capacitive Touch Screen
- Two Wavelength
Technical Specifications
| OTDR Wavelength (nm) | 1310/1550 nm, 1310 nm, 1550 nm, 1610 nm, 1625 nm, 1650 nm |
| Dynamic Range (dB) | 24/22 dB, 24 dB, 22 dB, 22 dB, 22 dB, 22 dB |
| Type of Fiber | 9/125 um SM |
| Type of Connectors | FC/PC; SC/PC (FC/APC SC/APC–Optional) |
| Dead Zone of Reflection | 6.56 ft (2 m) |
| Dead Zone of Attenuation Event | 39.37 ft (12 m) |
| Accuracy Distance (Reflection Event) | About ± 3.28 ft (1 m) + 210^ (-4) distance) |
| Storage of Records | >100,000 groups |
| Wavelength (nm) | 650 nm |
| Output Power | >10 mW |
| Measurement Range (dBm) | -70 to +10 dBm, -50 to +26 dBm |
| Wavelength Range (nm) | 800 to 1650 |
| Calibrated Wavelength | 850/980/1270/1300/1310/1490/1550/1577/1625/1650 |
| Detector | InGaAs |
| Accuracy | <±3% (-10 dBm, 71.6 ℉ (22 °C) |
| Resolution | Linearity: 0.1%, non-linearity: 0.01dBm |
| Connector | 0.098 in (0.25 cm) Universal Interface |
| Wavelength (nm) | Same with OTDR Wavelength |
| Connector | FC/PC (SC/ST as optional) |
| Output Power | ≥-5 dBm |
| Output Stability (dBm) | ±0.04 @ 68 ℉ (20 °C)@15min |
| Modulation | CW/270 Hz/1 kHz/2 kHz |
| LCD | 4.3-inch, 800 x 480 pixels, IPS Capacitive Touch Screen |
| Battery | Lithium-ion battery, >5000 tests |
| Temperature | Work: -958 ℉ (-550 °C), Storage: 1.940 ℉ (-1060 °C) |
| Humidity | 0 to 85% (non-condensing) |
| Dimensions (mm) | 7.28 in x 4.13 in x 1.96 in (18.5 cm x 10.5 cm x 5 cm) |
| Weight (g) | 18.6 oz (530 g) |
