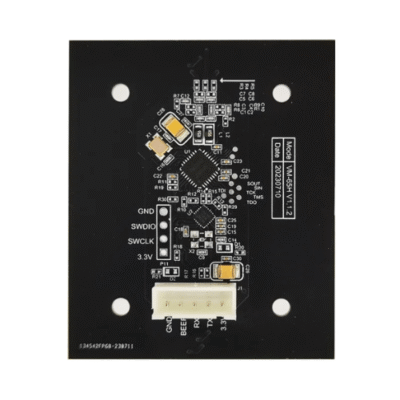

Multi-Interface RFID Reader Module 13.56 MHz for Arduino (TTL/Weigand) – The Inventory Master

A versatile 13.56 MHz RFID reader module with TTL UART and Weigand 26/34 interfaces, offering up to 5.90-inch card reading distance, GPIO, and flexible power options.

SKU: TIMHMOD-182 Category:

Technical Specifications

Frequency13.56 MHz
InterfaceTTL UART, Weigand 26, Weigand 34
GPIO2 inputs and 2 outputs (3.3 V level)
Card Reading Distance3.93 in to 5.90 in (0.33 ft to 0.49 ft)
Baud Rate115200 beats per second to 38400 beats per second
Power SupplyDC 3.5 V to 5 V
Operating Current110 mA to 260 mA
Sleep State Current< 100 uA
Standby Current≤ 80 mA
ProtocolISO 15693
Operating Temperature−4 °F to 158 °F (-20 °C to +70 °C)
Storage Temperature−4 °F to 185 °F (-20 °C to +85 °C)
Weight1 kg
