Overview

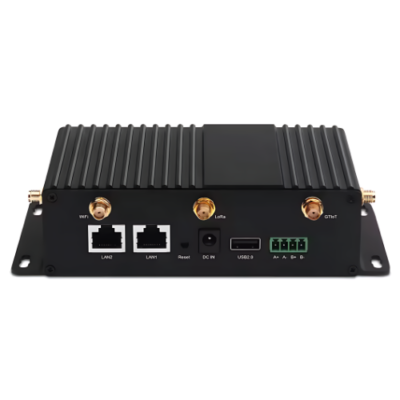

The Inventory Master Geniatech Multi-protocol Industrial IoT Gateway Linux Yocto zigbee gateway iot gateway industrial provides multiple network access modes to achieve stale, reliable, and uninterrupted network access. Users can choose flexibly according to the site working environment.
Technical Specifications
| CPU | Single ARM Cortex-A7 900 to 792 MHz |
| Storage | 512 MB (256 MB or 1 GB optional) DDR3 8 GB (4 GB optional) EMMC |
| OS | Linux or Yocto |
| Network | 2G or 3G or 4G or LTE LTE Cat4 for EU, LTE Cat4 for AU, LTE Cat4 for US (Optional) Built-in WiFi 802.11 a/b/g/n Ethernet port (LAN) 2 x RJ45 10/100Mbps LAN PoE IEEE802.3af standard, PoE PD with TVS protection (optional) |
| I/O interface | USB x 1 RS232 x 1 RS485 x 2 CAN x 1 ZigBee 3.0 (optional) Bluetooth or BLE 5.0 (optional) LoRa LoRaWAN communication specification (optional) |
| Control interface | DI/DO ± 15 KV (air) ± 10 KV (contact) Relay 2 x 3 A 250 VAC |
| Extended interface | LEDs NET, Power, Battery, LoRa SIM Slot Micro SIM Card GTIoT 2 x 5P 1.27 socket (Internal port) Debug 4P 2.0 ranking (Internal port) Extended interface UART 6P 2.0 ranking (Internal interface) Button Reset |
| Power Supply | Supply voltage DC 12 V 1.2 A Battery voltage 3.7 V 5000 to 1000 mAH (optional) Energy Within 5 W (for reference only) RTC battery 3 V 5 mA charging type |
| Size | 6.61 in x 3.77 in x 1.62 in (168 mm x 95.7 mm x 41.2 mm) |
| Net Weight | 15.00 oz (425 g) |
| Other | WiFi or BT antenna, LoRa antenna (optional), LTE antenna, GTIoT antenna (optional). |
