Overview

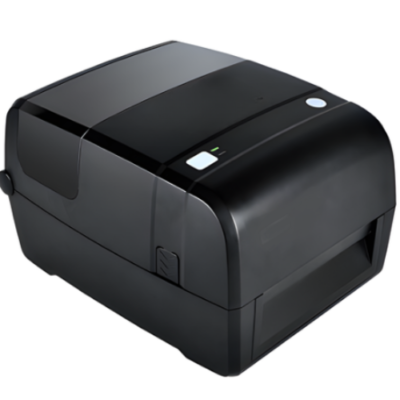

High-performance RFID label printer with wide frequency range, multiple printing methods, and resolution options, ideal for various label types
Features
- Print speed up to 8 ips.
- with RFID function to support UHF RFID, 860-928MHz, EPC C1G2(ISO18000-6C)
- The modular design of printer head makes the disassembly and assembly easy.
- With the function to automatically identify the printer head with 203 dpi and 300 dpi and automatically configure the printer without PC settings.
- With super large storage, DDR2 RAM 128 MB, Flash 256MB.

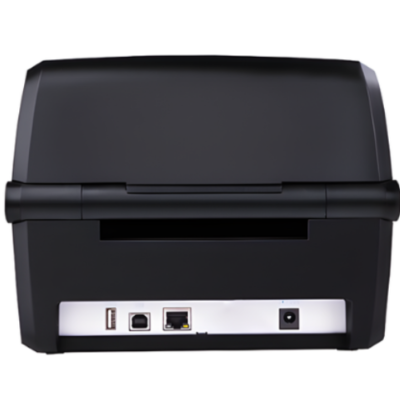

- Support multiple interfaces, USB HOST, B-type USB, Ethernet port for standard, Wi-Fi and Bluetooth module for optional.
- 5-inch color LCD screen supports touch, can easily achieve offline operation with USB HOST.
- Cool black housing, with printer mechanism, stable and durable.
- With various media to meet the demand of wide area.
- With free label editing software Bartender to make the label editing convenient and easy.
Technical Specifications
| Frequency | 860 MHz to 928MHz |
| Protocol | EPC C1G2(ISO18000-6C) |
| Printing Method | Thermal transfer or Direct thermal |
| Resolution | 203 dpi or 300 dpi |
| Max. Printing Speed | 8 ips (203dpi) |
| 6 ips (300dpi) | |
| Max. Printing Width | 4.25 in (108 mm) (203 dpi), 4.17 in (106 mm) (300 dpi) |
| Max. Printing Length | 90 in (2,286 mm) (203 dpi), 60 in (1,524 mm) (300 dpi) |
| Emulation | ZPL-II, TSPL, DPL, EPL |
| Protocol | ZPL, ZPL-II, DPL, TSPL, EPL |
| Ram | 128 MB |
| Flash | 256 MB |
| Sensor | Print Frame Open Detect, Ribbon End Detect, Paper Out Detect, |
| TPH Over Heating Detect, 2 Fixed See-through sensor, Full Range | |
| Reflective Sensor | |
| Types | Continuous Paper, Gap, Black Mark, Punched Hole Label |
| Width | 1 in (25.4 mm) to 4.65 in (118 mm), include the liner |
| Thickness | 0.002 in (60 um) to 0.01 in (250 um) |
| Label Roll Diameter | 5 in (127 mm) Max |
| Core Diameter | 0.5 in (12.7 mm), 1 in (25.4 mm). 1.5 in (38 mm) |
| Ribbon | Type Wax, Wax/Resin, Resin |
| Width 1.18 in (30 mm) to 4.33 in (110 mm) | |
| Length 984 ft (300 m) | |
| Core Diameter 1 in (25.4 mm) | |
| Software | Label Design Software Bartender Ultralite, Label Designer |
| Driver Seagull Driver: Windows7,8,10 Driver: Windows XP, Vista, 7, 8, 10, Linux, MacOS | |
| Resident Fonts | Bitmap fonts 6, 8, 12, 16, 32, OCR A and B. 90°,180°,270° rotatable and 10 times expandable in horizontal and vertical directions |
| TTF fonts Monotype CG Triumvirate™. 0°, 90°, 180°, 270° rotatable | |
| Download Fonts | Bitmap fonts 90°, 180°, 270° rotatable and 10 times expandable in horizontal and vertical directions |
| Asian fonts 16×16, 24×24. Traditional Chinese, Simplified Chinese, Japanese,Korean, 90∘,180∘,270∘, rotatable and 8 times expandable in horizontal and vertical directions | |
| TTF fonts 90°, 180°, 270° rotatable | |
| Barcodes | 1D Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5),I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen,FIM, GS1 data Bar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5,Industrial 2 of 5 , Logmars, Code 11, Code 49, Cada block |
| 2DPDF417, Data matrix code, MaxiCode, QR code, Micro PDF417, Micro QR code, Aztec code | |
| Code Page | 850, 852, 437, 860, 863, 865, 857, 861, 862, 855, 866, 737, 851, 869, WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257, UTF-8, UTF-16BE, UTF-16LE, DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5) |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are converted by the software download |
| Interfaces | Standard USB, USB HOST, Ethernet |
| Optional Wi-Fi, Bluetooth | |
| Control Panel | Power switch button, FEED button, 2 indicating LEDs |
| Lcd Display | 3.5 in TFT Color Touch Panel LCD |
| Rtc Function | Equipped |
| Power Supply | External AC/DC switching power adapter, AC 100 V to 240 V/DC 24 V/ 2 A/48 W, Peak 5 A |
| Options & Accessory | Peeler Module, Cutter Module, External Label Roll Holder |
| Physical Characteristic | Dimension(L×H×W) 12.165 in x 9.843 in x 7.087 in (308 mm × 250 mm × 180 mm) |
| Agency Approval | CE EMC (55022 Class B), FCC EMC (Class A), CCC, RoHS |
| Environment | Operation 41 °F to 122 °F (5 ºC to 50 ºC) at humidity 25 % to 85 % non-condensing |
| Storage-40 °F to 140 °F (-40 ºC to 60 ºC) at humidity 10 % to 90 % non-condensing | |
| Weight
| 6.393 lbs (2.9 kg) |
