Optical Fiber Network Length Breakpoint with Compact Design – The Inventory Master

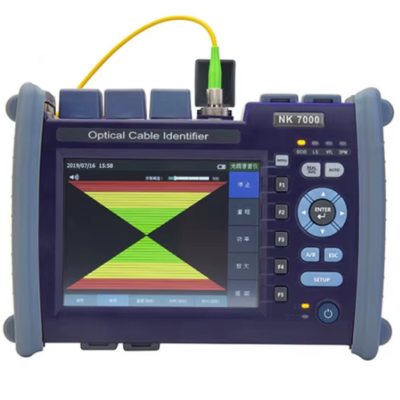

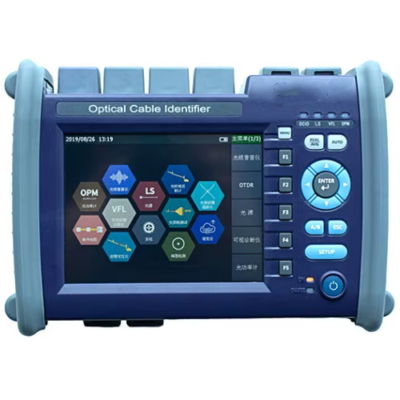

Portable OTDR tester for fiber network length, breakpoint, and loss analysis, featuring a touch screen, durable design, and Wi-Fi connectivity.

SKU: TIMFOET-176 Category:

Features

  • Compact design
  • Accurate network diagnostics
  • 6-inch color display
  • Class II laser safety
  • User-friendly touchscreen interface
  • 1550nm wavelength range
  • Efficient fiber troubleshooting
  • Portable and lightweight
  • Versatile testing capabilities
  • Fast and reliable results



Technical Specifications

UseHome Optical Network Terminal
NetworkWi-Fi
ColorBlue & Grey
Small OrdersAccepted
Display5.6-in (14.2 cm) color LCD + touch screen
Wavelength1550 nm ± 20 nm
Laser Safety LevelClass II
Connector TypeFC/UPC (Interchangeable SC, ST)
Max Dynamic Range (dB)35/33/38/36, 42/40, 45/43, 32/30/30, 37/35, 32/30/30, 26/28
Pulse Width3ns, 5ns, 10ns, 30ns, 50ns, 80ns, 160ns, 320ns, 500ns, 1000ns, 3000ns, 5000ns, 8000ns, 10000ns, 20000ns
Ranging Accuracy± (0.75m + Sample interval + 0.005% X Test distance)
Loss Accuracy± 0.05dB/dB
Sample Points16k to 256k
Reflection Accuracy± 3dB
File FormatSOR Standard File Format
Loss Analysis4-point method, 5-point method
Refresh Rate3Hz (Typical)
Data StorageInternal: 200,000 curves; External: 4 GB
Data InterfaceUSB, Mini-USB, 10M/100M Ethernet Port
Wavelength Range (OPM)800nm to 1700nm
Connector (OPM)Universal FC/SC/ST
Test Scope-50 dBm to +26 dBm
Calibration Wavelength850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, 1650 nm
Output Power≥ -5 dBm
StabilityCW, ±0.5 dB/15min (after 15 minutes of preheating)
Output Power (VFL)≥ 10mW
Mode (VFL)CW/1Hz/2Hz
Display (Additional)7 in (17.8 cm) color LCD + touch screen
Power SupplyAC/DC adapter: Input 100V to 19V, 1.5A, Lithium battery: 7.4V, 5200mAh
Relative Humidity0% to 95%, non-condensing
Test Range1640.42 ft (500 m), 0.621 mi (1 km), 1.243 mi (2 km), 2.485 mi (4 km), 4.971 mi (8 km), 9.942 mi (16 km), 19.884 mi (32 km), 39.768 mi (64 km), 79.537 mi (128 km), 159.075 mi (256 km)
Event Blind Zone2.625 ft (0.8 m)
ATT Blind Zone19.685 ft (6 m)
Sample Resolution0.164 ft to 52.493 ft (0.05 m to 16 m)
Working Temperature14 °F to 122 °F (-10 °C to +50 °C)
Storage Temperature-40 °F to 158 °F (-40 °C to +70 °C)
Size8.937 in × 6.299 in × 2.756 in (22.7 cm × 16.0 cm × 7.0 cm)
Weight2.65 lb (1.2 kg)
