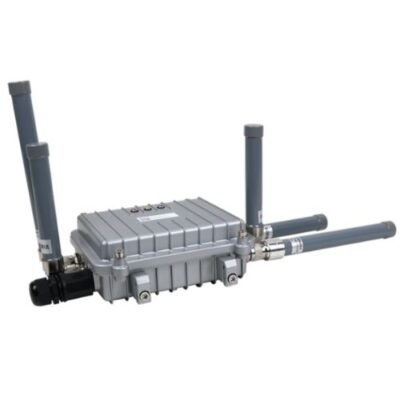

Outdoor LoRa Gateway– The Inventory Master

Outdoor LoRa Gateway– The Inventory Master

The versatile outdoor LoRa Gateway that supports PoE (Power over Ethernet) and DC power supply options.

SKU: TIMOLG-200 Category:

Overview

The Outdoor LoRa Gateway– The Inventory Master is a versatile outdoor LoRa Gateway that supports PoE (Power over Ethernet) and DC power supply options. It is designed to handle multiple protocols, including Wi-Fi 2.4G, BLE 5.2, LoRa and LTE Cat1, making it suitable for various scenarios. Its durable construction ensures reliable performance in diverse environments, from smart cities to industrial applications.

Besides, the Outdoor LoRa Gateway– The Inventory Master offers local deployment as well as cloud. This adaptability allows for reduced development time and a faster time to market, making it an ideal choice for various IoT applications and scenarios.



Features

  • Based on the LoRa Concentrator Engine: Semtech SX1302
  • TX power up to 27dBm, RX sensitivity down to -139dBm @SF12, BW125kHz
  • LoRa Frequency band support: RU864, IN865, EU868, US915, AU915, KR920, AS923
  • One WAN/LAN variable network port
  • Support the POE Power supply
  • Support BLE 5.2, Wi-Fi 2.4G IEEE 802.11b/g/n
  • Support GPS，GLONASS，Galileo and QZSS
  • Support IP66 waterproof housing
  • Support OTA
  • Support LTE Cat1



Technical Specifications

Category Specifications
CPU Quad-core Cortex A35
System Debian11
RAM 2GB
eMMC 32GB
Network Interface
  • 1 * 10/100 Mbps WAN/LAN variable port
  • Supports CAT-5/CAT-5E for data transmission
  • Supports POE (voltage range 44-57V)
Indicator LEDs (RGB) 1). Power

2). Network

3）LTE

Installation Flat, Ceiling
Antenna 2 * LTE, 1 * GPS, 1 * LoRa, 1 * Wi-Fi 2.4G
Hardware

Encryption

ATECC608B
Operating

Temperature

-4°F to 149°F (-20℃ to 65℃)
Storage

Temperature

-40°F  to 185°F (-40℃ to 85℃)
Operating humidity 10%~90%
IP rating IP66



Performance Requirement


















Wi-Fi Performance

  • IEEE Wireless LAN standard: IEEE802.11n, IEEE802.11g, IEEE802.11b
  • Data Rate:

IEEE 802.11b Standard Mode:1,2,5.5,11Mbps

IEEE 802.11g Standard Mode:6,9,12,18,24,36,48,54 Mbps IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band

MCS0~MCS7 @ HT40/ 2.4GHz band MCS0~MCS9 @ HT40/ 5GHz band

  • Sensitivity:

VHT80 MCS9: -60dBm@10% PER(MCS9) /5GHz band HT40 MCS9: -63dBm@10% PER(MCS9) /5GHz band HT40 MCS7: -70dBm@10% PER(MCS7) /2.4GHz band HT20 MCS7: -71dBm@10% PER(MCS7) /2.4GHz band

  • Transmit Power:

IEEE 802.11n: 14dBm @HT20/40 MCS7 /5GHz band IEEE 802.11n: 16dBm @HT20/40 MCS0 /5GHz band IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHzband IEEE 802.11g: 16dBm @54MHz

IEEE 802.11b: 18dBm@11MHz

  • Wireless Security: WPA/WPA2, WEP, TKIP, and AES
  • Working mode: Bridge, AP Client
  • Range: 1968.5 inc (50 meters) minimum, open field

  • Transmit Power:17dBm
  • Highest Transmission Rate: 300Mbps
  • Frequency offset: +/- 50KHZ
  • Frequency Range (MHz): 2412.0~2483.5
  • Low Frequency (MHz):2400
  • High Frequency (MHz):2483.5
  • E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
  • Bandwidth (MHz):20MHz/40MHz
  • Modulation: BPSK/QPSK, FHSSCCK/DSSS, 64QAM/OFDM










Bluetooth Performance

  • TX Power: 19.5dBm
  • Range: 5,905.51 inch (150 meters) minimum, open filed
  • Receiving Sensibility: -92dBm@0.1%BER, 1Mbps
  • Frequency offset: +/-20KHZ
  • Frequency Range (MHz):2401.0~2483.5
  • Low Frequency (MHz):2400
  • High Frequency (MHz):2483.5
  • E.i.r.p (Equivalent Isotopically Radiated power) (mW)<10mW
  • Bandwidth (MHz):2MHz
  • Modulation: GFSK






LoRaWAN

  • Frequency band support: RU864, IN865, EU868, US915, AU915, KR920, AS923
  • TX power up to 27dBm, RX sensitivity down to -139dBm @SF12, BW125kHz
  • Range: 10KM maximum, open field
  • Protocol: V1.0 Class A/Class C and V1.0.2 Class A/Class C
  • LoRa antenna gain：3/5dBi optional
  • LoRa Antenna Type： Omnidirectional
  • LoRa working mode： Full/half-duplex (optional)
LTE Cat1
  • LTE FDD: B2/B4/B5/B12/B13
  • WCDM: B2/B4/B5
  • LTE FDD Data rate:10(DL)/5(DL)
Ethernet 10/100 Mbps
