Overview

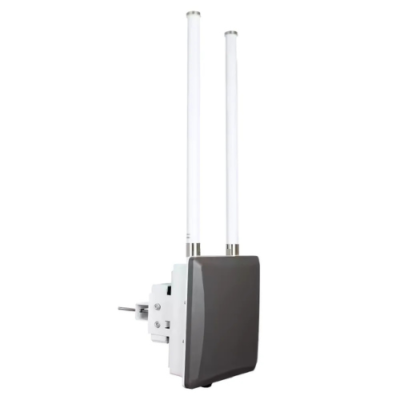

TIMOLGH-143 is an ideal product for IoT commercial deployment. With its industrial-grade components, it achieves a high standard of reliability. The new TIMOLGH-143 supports up to 16 LoRa channels, multi-backhaul with Ethernet, Wi-Fi, and Cellular connectivity. Optionally, there is a dedicated port for different power options, solar panels, and batteries. Its new enclosure is designed to allow LTE, Wi-Fi, and GPS antennas to be inside the enclosure.
Technical Specifications:
| Feature | Specifications |
| Computing | MT7628, DDR2 RAM 128 MB |
| Wi-Fi Feature | Frequency: 2.4 GHz (802.11b/g/n) 2×2 MIMO RX Sensitivity: -95 dBm (Min) TX Power: 20 dBm (Max) Operation channels: 2.4 GHz 1–13 |
| LoRa Feature | SX1303 mPCIe card (max 2) 8 Channels (16 optional) RX Sensitivity: -139 dBm (Min) TX Power: 17 dBm (Max) Listen Before Talk |
| Frequency | EU433/CN470/EU868/US915/AS923/AS923-1/AS923-2/AS923-3/AS923-4/AU915/IN865/KR920 |
| Cellular Feature (with RAK7289C V2) | Supports Quectel EG95-E/EG95-NA (IoT/M2M LTE Cat 4) EG95-E (EMEA) LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8GSM/EDGE: B3/B8 EG95-NA (North America) LTE FDD: B2/B4/B5/B12/B13 WCDMA: B2/B4/B5 |
| Power Supply | PoE (IEEE 802.3af): 37~57 VDC |
| ETH | RJ45 (10/100 M) |
| Antenna | LoRa: 1 or 2 N-Type connectors LTE: Internal antenna Wi-Fi: Internal antenna |
| Ingress Protection | IP67 |
| Enclosure Material | Aluminum and plastic |
| Operating Temperature | -30 °C to +55 °C |
| Installation Method | Pole or wall mounting |
