Features
- Vertical polarization
- Omni directional radiation
- SMA male straight connector
- Black ABS housing

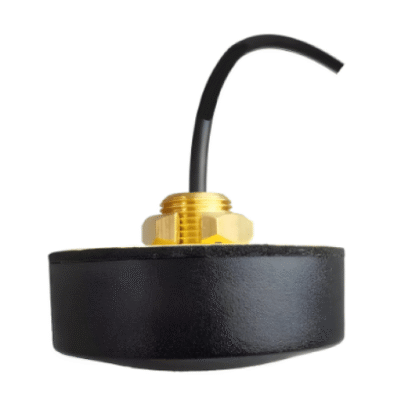

- Screw (M12) mount
Technical Specifications
| Frequency Range | 865 MHz to 875 MHz |
| VSWR | 1.5 to 1 |
| Band Width | 10 MHz |
| Gain | 2.5 dBi |
| Polarization | Vertical |
| Radiation | Omni directional |
| Maximum Input Power | 50 W |
| Impedance | 50 ohms |
| Maximum Wind Speed | 124.27 mi per h (200 km per h) |
| Cable | 9.84 ft (3 m) RG174 cable |
| Connector | SMA male straight |
| Other Cable | RG316 and LMR100 or others |
| Other Connector | FME and FAKRA and SMB and MCX or others |
| Housing | Black ABS |
| Mount | Screw (M12) |
| Waterproof | 100 % |
| Vibration | Sine sweep 1 g (0 – p) 10 Hz to 50 Hz to 10 Hz each axis |
| Humidity | 95 % to 100 % RH |
| Working Temperature | -40 °F to 185 °F (- 40 ℃ to + 85 ℃) |
| Size | 1.85 in (Dia) x 0.55 in (47 mm (Dia) × 14 mm) |
| Weight | < 8.82 oz (< 250 g) |
