Overview

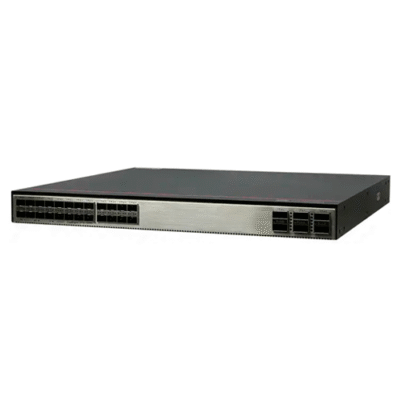

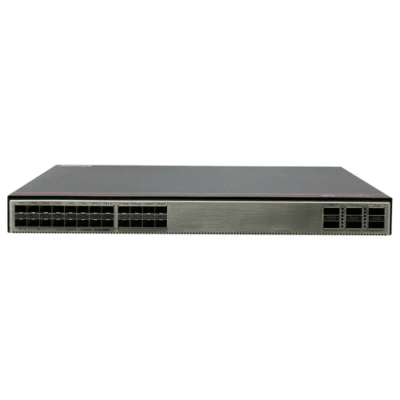

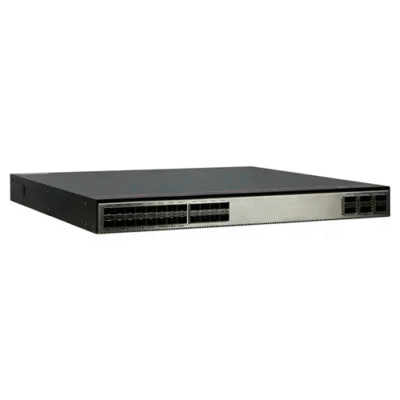

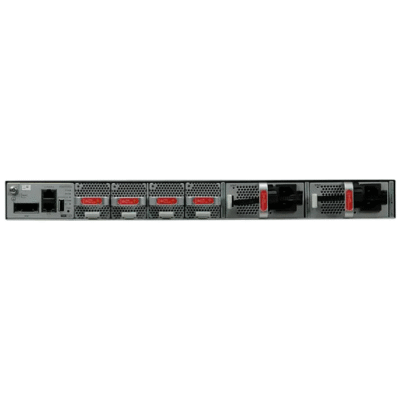

The Inventory Master Outdoor Wi-Fi Router, 24 GE Ports, Advanced QoS, Long Range provides 10 GE downlink ports as well as 100 GE uplink ports. This product supports native AC capabilities and can manage 1 K APs. This product provides free mobility function to ensure consistent user experience and is Virtual Extensible LAN (VXLAN) capable to implement network virtualization. This product supports built-in security probes and abnormal traffic detection, encrypted Communications analytics (ECA), and network-wide threat deception. It provides services to enterprise campuses, carriers, higher education institutions, and governments.
Technical Specifications
| Description | S 6730-H24X 6 C (24 x 10 GE SFP+ ports, 6 x 40 GE QSFP28 ports) |
| Fixed Ports | 24 x 10 Gig SFP+, 6 x 40 or 100 Gig QSFP28 |
| Chassis Height (U) | 1 U |
| AC Power | Rated AC voltage: 100 V to 240 V AC; 50Hz to 60 Hz Max. AC voltage: 90 V to 290 V AC; 45Hz to 65 Hz |
| DC Power | Rated DC voltage: –48 V to 60 V Max. DC voltage: –38.4 V DC to 72 V DC |
| Input Current | AC 600 W Max 8 A DC 1000 W Max 30 A |
| Maximum Power Consumption | 231 W |
| Minimum Power Consumption | 97 W |
| Storage Temperature | -40°F to 158 °F (-40 °C to +70 °C) |
| Operating Altitude | 3.1 mi (5000 m) |
| Noise (Sound Pressure at Normal Temp) | 65 dB(A) |
| Surge Protection Specification | AC power interface: differential mode: ±6 kV, common mode: ±6 kV DC power interface: differential mode: ±2 kV, common mode: ±4 kV |
| Dimensions (W x D x H) | 17.40 in x 16.53 in x 1.69 in (44.2 cm x 42 cm x 4.3 cm) |
