Overview

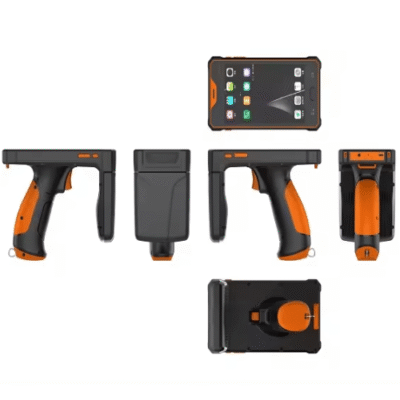

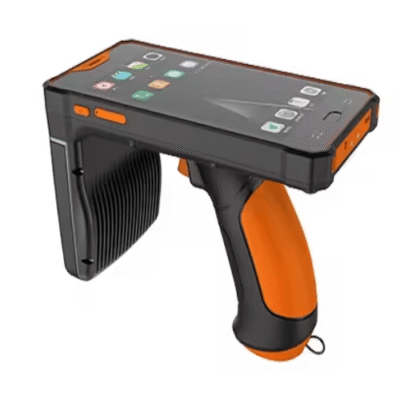

The Inventory Master Pistol Barcode RFID reader has 4G, NFC/UHF RFID reader, 1D/2D bar code scanner, Pistol grip Rugged handheld PDA with Octa-core, Sigle SIM and 4G communication. It is with1920 x 1080 high resolution, 5″ touch screen, Android 8.1 OS. 1D/2D barcode reader NFC UHF RFID, Pistol grip 8 Support WIFI, BT, GPS+BDS and other functions.
Features
- Android 8.1 operating system
- MSM 8 core CPU, 1.8GHZ; RAM: 4G; Flash: 64G
- IP67/Drop resistance from 1.2m
- 5 inch IPS LCD screen
- 4G, WI-FI, BT, GPS
- 1D laser barcode scan, 2D barcode scan
- RFID reading function: HF/UHF RFID Reader
- Pistol and docking station design
- Dual-battery System
Technical Specifications
| Frequency | 13.56MHZ |
| Protocol | ISO or IEC 15693, ISO or IEC 14443A |
| Operating System | Android 8.1 embedded OS |
| CPU | 1.8GHz |
| GPU | QUAL® Adreno™ 306 GPU,400Mhz |
| RAM | RAM 4G; FLASH 64G |
| Industrial Protection Grade | IP65 |
| Drop Grade | Drop resistance from 1.2m |
| BT | V4.0 |
| Handle Battery | 3.8V, 5000mAh |
| Standby | The standby current is less than 10mA |
| Dimension | 6.61 in x 3.31 in x 0.59 in (168mm x 84mm x 15mm) |
| Working Temperature | -4°F to 122°F (-20℃ to +50℃) |
| Storage Temperature | -40°F to 140°F (-40℃ to +60℃) |
| Humidity | 5% to 95% relative humidity |
| Weight | 8.11 ounces (230g) |
