Overview

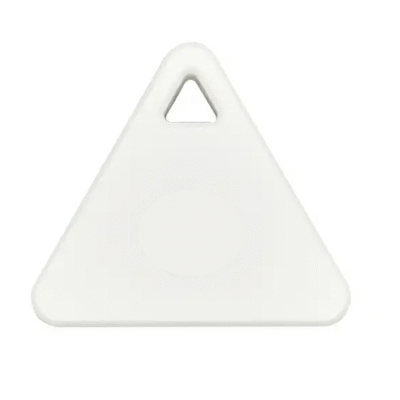

The Inventory Master Bluetooth programmable asset tracking ibeacon is a Bluetooth 5.1 low-energy smart beacon, it supports iBeacon, Eddystone (such as URL, UID, TLM), AltBeacon for broadcasting, and can promote up to 10 advertising frame slots. With the iOS & Android FeasyBeacon SDK, the developers can take advantage of the flexibility of the SDK and focus on their own applications, such as Broadcast, Proximity Marketing, Digital Signage, Indoor and Outdoor Location, Asset Tracking, Vehicle Tracking, etc.
Features
- Advertising distance up to 524.9 ft (160 m) (open area)
- Bluetooth 5.1 Compliant
- Pre-programmed with Feasycom Standard Beacon Firmware
- Up to 10 slots of Advertising Frames
- Portable Small-sized Beacon with 3 Year Battery Life
- Variety of Additional Components
- Configurable by Free FeasyBeacon Mobile App and SDK
Technical Specifications
| Chipset | Renesas or Dialog DA 14531 |
| Bluetooth Version | Bluetooth 5.1 |
| TX Power | -19.5 dBm to +2.5 dBm |
| Antenna | PCB Coil antenna |
| Button | Long press central area for power on or off |
| G-Sensor | Optional |
| Buzzer | Optional |
| Power Supply | Ansmann Lithium Coin cell CR 2032 (230 mAh) |
| Battery Life | 3 Year (ADV Interval = 1300 ms TX Power = 0 dBm) |
| Material | ABS plastic |
| Color | White or customized |
| Protection | IP 40 |
| Operating temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Size | 1.5 in x 1.3 in x 0.3 in (37.8 mm x 33.8 mm x 7.9 mm) |
| Net Weight | 0.01 lb (6.4 g) |
