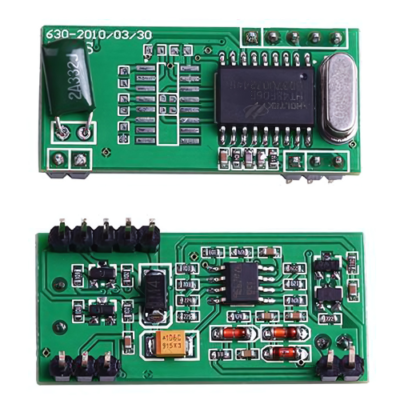

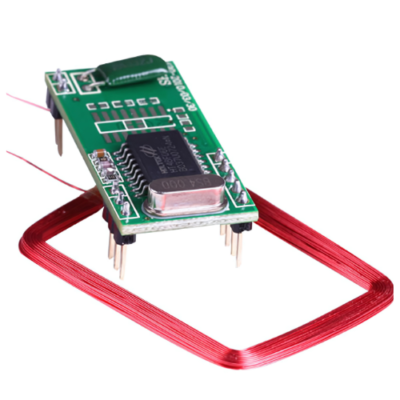

Pro X RFID Reader Module 125KHz for EM4100/TK4100 with Wiegand/TTL Output – The Inventory Master

125KHz RFID Reader reads EM4100/TK4100 cards and provides output in Wiegand26, RS232, and TTL formats, delivering accurate CSN card numbers.

SKU: TIMLF-331 Category:

Technical Specifications

Frequency 125KHz
Supporting Card EM4100 or TK4200 or EM4200 Card
Interface Wiegand26, TTL, RS232
Power Supply 5V & 3.3V
Operating Temperature 14°F to 158°F (-10℃ to 70℃)
Antenna External , Variety of optional specifications
Dimension 1.54in x 0.75in x 0.35in (39mm x 19mm x 9mm)
Weight  0.09lb (0.04kg)
