Overview

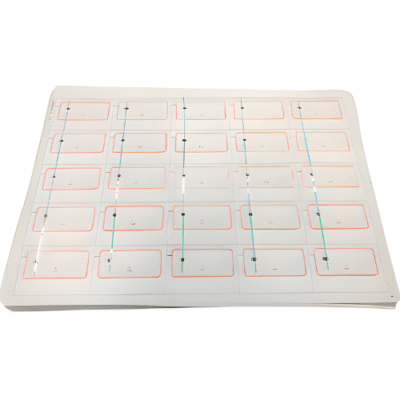

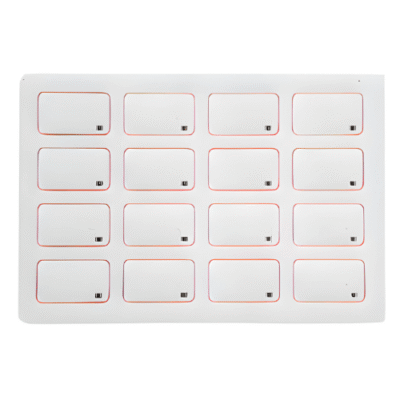

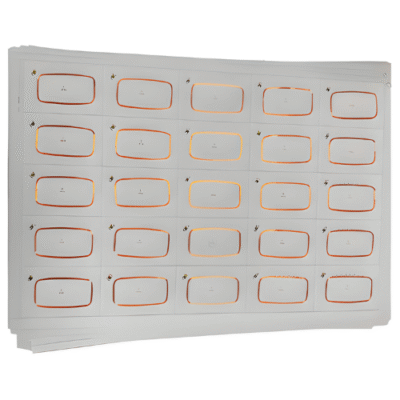

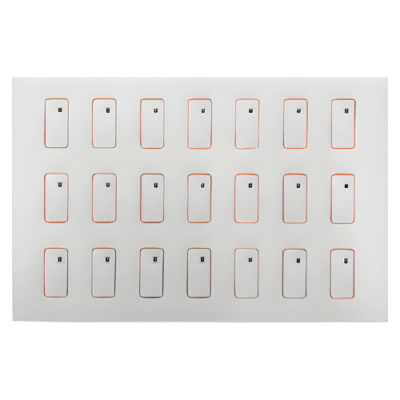

This The Inventory Master 125 khz rfid antenna inlay nfc 213 nfc card inlay prelam rfid sheet for hotel card is rfid prelam inlay, also called rfid card inlay, contactless card inlay, as core part of rfid card, rfid prelams are inlays for rfid cards production. These cards are suitable for printing as id cards, membership cards, loyalty cards, door access cards, business cards and many other such uses. Our plastic blank cards have been specially manufactured and packaged to be clean from dust.
Features
- Material pvc
- Read range depend on the reader and chip
- Operating frequency 125 KHZ 13.56 MHZ 860 MHZ to 960 MHZ
- Chip EM4200 TK4100 T5577 FM1108 custom all available
- HF air antenna ultrasonic embedding
Technical Specifications
| Operating Frequency | 125 KHz 13.56 MHz 860 MHz to 960 MHz |
| Standard | ISO 7816, ISO 14443, ISO 15693, ISO 18000 |
| Material | PVC |
| Specification | Different layouts are available |
| Read Range | Depend on the Reader and Chip |
| Chip | EM4200 TK4100 T5577 FM1108 Custom all available |
| Dimension | 12.2 in x 18.4 in (310 mm x 468 mm) Max size 20.4 in x 16.5 in (520 mm x 420 mm) A4 8.2 in x 11.6 in (210 mm x 297 mm) |
| Thickness | UHF 0.023 in (0.6 mm) 0.019 in (0.5 mm) |
| Antenna | HF air antenna ultrasonic embedding or al etching LF air antenna UHF Etched antenna |
| Working Temperature | – 5 °F to 194 °F (- 15 ℃ to + 90 ℃) |
| Store Temperature | – 5 °F to 131 °F (- 15 ℃ to + 55 ℃) |
