Overview

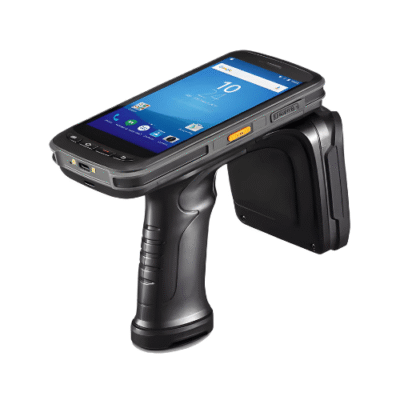

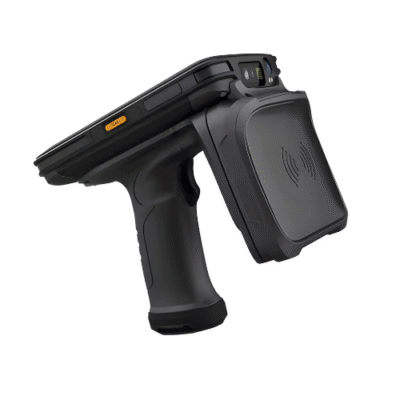

The Inventory Master RFID handheld scanner reader for warehouse management is equipped with a high-performance CPU and has ultra-long battery life. It combines the powerful reading and writing functions with better sensitivity which helps to achieve more accurate and faster data collection. It is an android rugged RFID reader that boasts best in class UHF RFID capability. The RFID reader features optional barcode scanning, Octa-Core processor and 8000 mAh powerful battery to perfectly meet demands in intensive applications. It has circular polarized antenna. It provides a wide RF field capable of scanning tags that are spread out over a large area. That means we can just wave a device to scan tags of inconsistent orientation from a reasonably short or long distance. The read rate with a circular polarized antenna reached 900 tags per s.
Technical Specifications
| Frequency | 860 MHz to 960 MHz |
| Protocol | EPC global UHF Class 1 Gen 2 ISO 18000-6C |
| Output Power | 5 dBm to 30 dBm |
| Reading Rate | > 900 tags per s |
| Reading Distance | 49.2 ft (15 m) |
| Work Current | 1000 mA +or -5% at DC 12 V Input |
| Operating System | Android 11, Support Soti MobiControl, SafeUEM |
| CPU | Cortex-A53 8 Core CPU 2.5 GHz |
| RAM +ROM | 3G + 32G (4G + 64G) |
| Expand Memory | 3G + 32G (4G + 64G) |
| Bluetooth | Bluetooth v2.1 + EDR, 3.0 + HS, v4.1 + HS |
| WIFI | IEEE802.11 a or b or g or n or ac |
| GNSS | BeiDou or GPS or GLONESS, Support A-GPS |
| Touch Panel | Corning Gorilla Glass supports multi-touch |
| Display Screen | 5.2 in (13.2 cm) IPS FHD |
| Camera | 13 MP Autofocus with flash |
| Keypad | 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
| Antenna | Circular antenna, Gain: 4 dBi |
| Audio | Speaker, 2 microphones |
| Expansion Slot | 1 slot for SIM card, 1 slot for SIM or TF card |
| Sensor | Gravity sensor, Light sensor, Distance sensor |
| Humidity | 5 % to 95 % (no condensation) |
| Drop | 4.9 ft (1.5 m) drop |
| Working Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Storage Temperature | -40 °F to -94 °F (-40 °C to -70 °C) |
| Dimensions | 6.4 in X 3.1 in X 0.9 in (164.2 mm X 80.0 mm X 24.3 mm) |
| Weight | 23.0 oz (654 g) |
