Overview

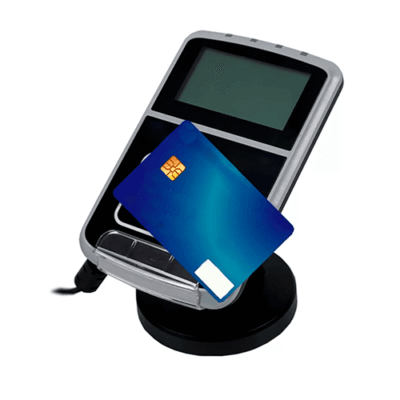

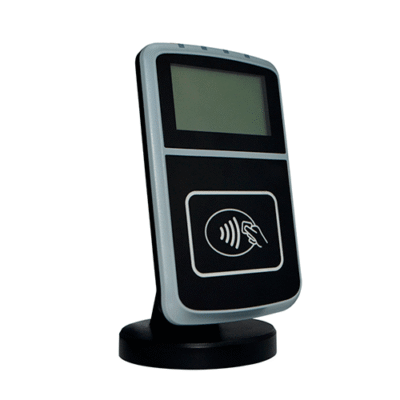

This RS232 RFID USB Card Smart Reader has a frequency of 13.56 MHz, a dimension of 159×100× 21 mm, and a reading range from 0 mm to 50mm.
Features
- Read/ Serial RS232 Interface with RJ45 connector
- USB interface for power supply
- ARM 32-bit CortexTM-M3 Processor
- Smart Card Reader:
a) Write speed of up to 848 kbps
b) Built-in antenna for contactless card access, with card reading distance of up to 50 mm (depending on tag type)
c) Support for ISO 14443 Part 4 Type A and B cards and MIFACE series
d) Built-in anti-collision feature
e) Three ISO 7816-compliant SAM slots - Payment Applications:
a) MasterCard® Pay Pass™ MAG Stripe and M/Chip
b) Visa pay Wave® MSD and QVSDC - Built-in Peripherals:
a) 16 alphanumeric characters x 8 lines Graphical LCD (128 x 64 pixels)
b) Four user-controllable LEDs (Blue, Yellow, Green, and Red)
c) User-controllable tapping region backlight (Red, Green, and Blue)
d) User-controllable speaker (Audio tone indication)
e) Micro-SD card slot
Technical Specifications
| Operating Frequency | 13.56 MHz |
| Smart Card Interface Support | ISO 14443 Type A & B MIFACE MasterCard® Pay Pass™ MAG Stripe and M/Chip Visa pay Wave® MSD and QVSDC |
| Supply Voltage | Regulated 5V DC |
| Supply Current | 500 m A (max.) |
| Dimension | Main Body: 6.25929in×3.93701in×0.826772 in (159×100× 21 mm) |
| Weight | Main Body: 9.92 oz (281 g) |
| Operating Distance | Up to 1.97 in(50 mm) (depends on the tag type) |
| Operating Temperature | 32°F to 122°F(0 to 50°C) |
