Overview

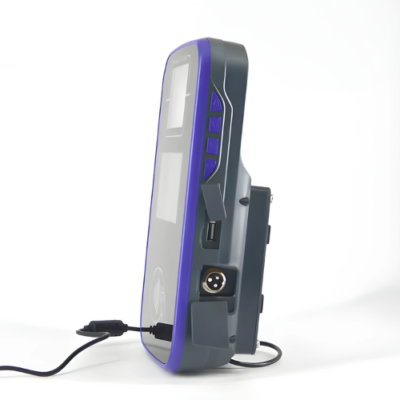

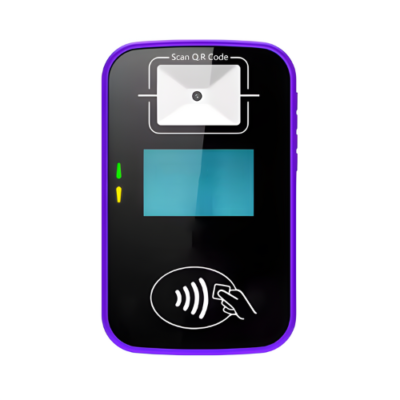

The Inventory Master Bus Validator with RFID is a contactless card validator designed for micro-payment, mainly used in public transportation to pay for taking the bus. The card validator is industrial quality, which could endure the terrible working environment in vehicle.
Technical Specifications
| Working Frequency | 13.56MHz |
| SAM Card Standard | ISO7816 card, 1.8V/ 3V/ 5V |
| GPS | Built-in GPS |
| Transaction Speed | <0.3S |
| Reading Distance | ≤ 3.937 in (10cm) |
| CPU Processor | Quadcore ARM Cortex A7 CPU, 1.1GHz |
| Operation System | Linux |
| Screen Size | 4 inches |
| Resolution | 800 x 480 |
| LCD | TFT Color LCD, with backlight |
| Working Temperature | -4°F to 122°F (-20°C to +50°C) |
| Storage Temperature | -40°F to 176°F (-40°C to +80°C) |
| Humidity | 95% RH |
| Dimension | 9.84 in × 6.10 in × 1.96 in (250mm x 155mm x 50 mm) |
| Net Weight | ≦ 28.22 oz. (0.8Kg) (not include the bracket) |
