Overview
125 KHz EM 4100 or TK 4001, UART Interface, ISO 14443-A protocol, DC 3.3 V or 5 V Voltage. 0 in to 2.16 in reading range. Compact Design.
Features
- Dual Voltage Support
- Wide Read Range
- Versatile Interface
- Fast Reader Interval
- Compact Design
- Compatible Card Types
- High-Quality Construction
- Application Specific
Technical Specifications
| Frequency | 125 KHz |
| Protocol | ISO 14443-A |
| Card Supported Types | EM 4100 or TK 4001 |
| Interface Options | Wiegand 26 or Wiegand 34, UART |
| Read Range | 0 in to 2.16 in (0 mm to 55 mm) |
| Reader Interval | 0.5 seconds |
| Voltage Compatibility | DC 3.3 V or 5 V |
| Temperature | 32 °F to 113 °F (0 °C to 45 °C) |

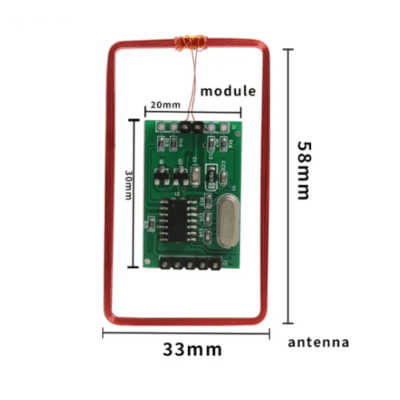

| Dimension | 1.20 in X 0.78 in (30.5 mm X 20 mm) |
| Weight | 5.29 oz (150 g) |
