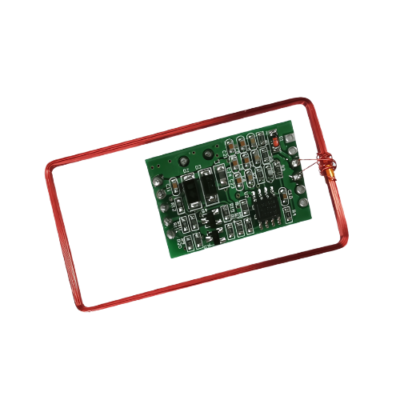

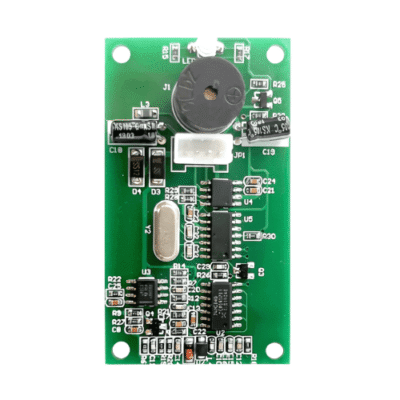

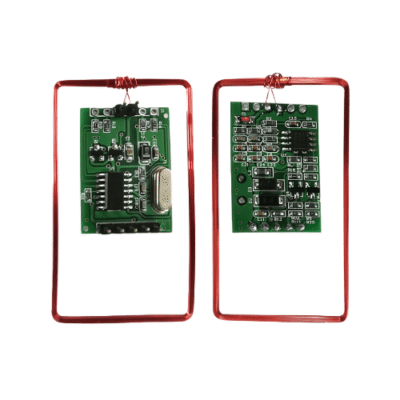

Electronic Label RFID Scan is a compact 125 KHz RFID reader module, ideal for seamless identification of low-frequency ID cards and tags, enhancing security and efficiency.

SKU: TIMLMOD-119 Category:

Technical Specifications

Frequency125 KHz
ProtocolManchester code
Card Type125 Khz ID Card
MaterialPC+PCB Board
InterfaceWiegand 26 or 34
Reading Distance0.07 ft to 0.16 ft  (2 cm to 5 cm)
Operating VoltageDC 3.3 V or 5 V
AntennaExternal
Multi Size Optional
Reader Interval0.5 S
Working ModeWeigand WG 26 or 34 or UART
FunctionRFID Chip Reading
Read Range0 i  (0 mm to 100 mm)
Working Current<100 mA
Induction Time<0.2 S
Working Humidity10 % RH to 90 % RH
Weight4.93 oz (140 g)
