RFID Smart Reader Non-Contact Frequency Module with TTL Interface – The Inventory Master

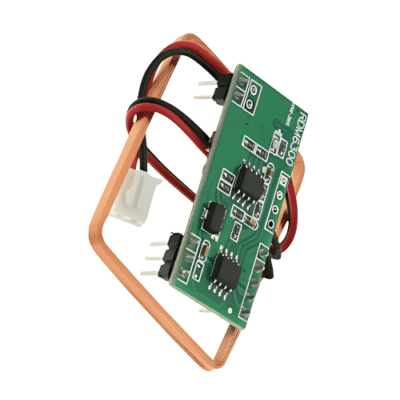

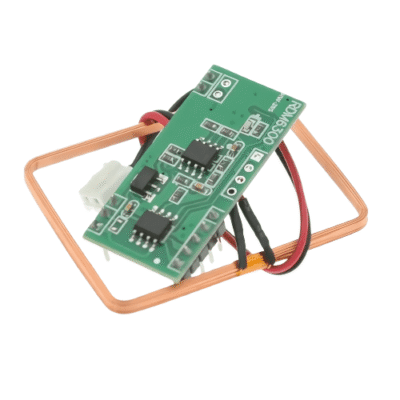

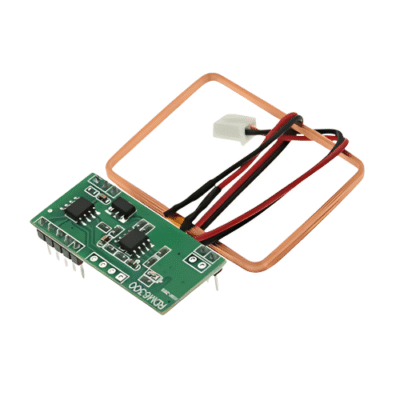

The RFID Smart Reader is a 125 KHz frequency, non-contact RFID reader with TTL and RS232 interfaces. Compact in size, it operates on DC 5V and functions between 14°F to 158°F.

SKU: TIMLMOD-118 Category:

Technical Specifications

Frequency125 KHz
TypeCircuit Board
Baud Rate9600
InterfaceTTL
level RS 232
Working VoltageDC 5 V
Working Current<50 mA
Receive Distance0.78 in to 1.96 in (20 mm to 50 mm)
Humidity0 % RH to 95 % RH
ApplicationRFID
Operating Temperature14 °F to 158 °F (-10 °C to + 70 °C)
Storage Temperature-4 °F to 176 °F (-20 °C to + 80 °C)
Wiring Size1.81 in X 1.25 in X 0.11 in (46 mm X 32 mm X 3 mm)
PCB Size1.51 in X 0.74 in X 0.35 in (38.5 mm X 19 mm X 9 mm)
 Size1.81 in X 1.25 in (46 mm X 32 mm)
Weight0.35 oz (9 g)
