Overview

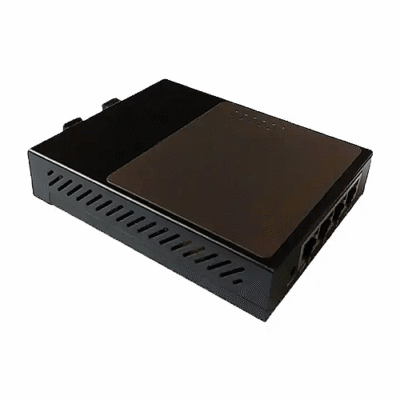

The Inventory Master Ring Type Fiber Media Converter with 2 Gigabit Fiber Ports & Redundant Network Protection is designed to meet requirements of multi fiber access network. It provides 2 1000BASE to FX fiber ports and 3 10 or 100 or 1000BASE to TX RJ45 ports, and one Console port, which provides not only point to point network connection, but also point to multi-point chain network. It is applied to highway network systems, mine communication system and other chain multi-point networks.
Features
- 2 Gigabit fiber ports
- 3 Gigabit RJ45 ports
- Supports Fiber Hi per-Ring
- Redundant ring network protection
- WEB management with RSR
- 14 °F to 158 °F (-10 °C to 70 °C) operating range
- Multiple fiber port options.
Technical Specifications
| MAC Table | 1 K |
| Buffer Space | 512 K bit |
| Wavelength | 850 nm or 1310 nm or 1550 nm |
| Power | DC 12 V |
| Storage Temperature | -40 °F to 176 °F (-40 ℃ to 80 ℃) |
| Maintaining Humidity | 5% to 90% non-condensing |
| Delay | <10 us |
| Bit Error Rate | <1 or 1000000000 |
| MTBF | 100,000 hrs |
| Power Consumption | 5 W |
| Dimensions | 1.02 in x 3.78 in x 4.72 in (26 mm (H) x 96 mm (W) x 120 mm (D)) |
