Overview

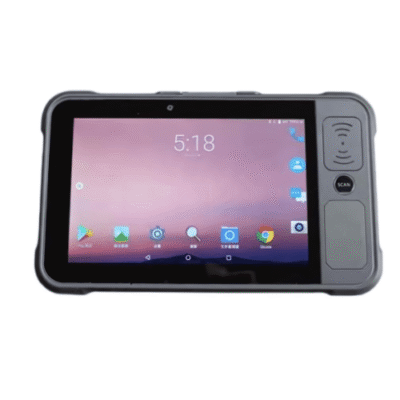

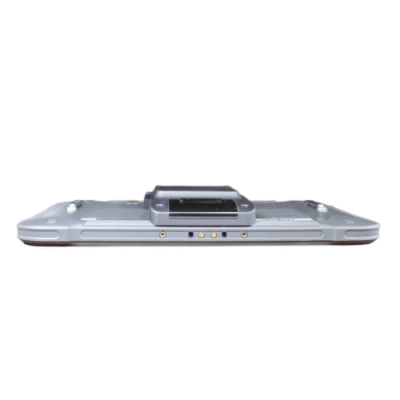

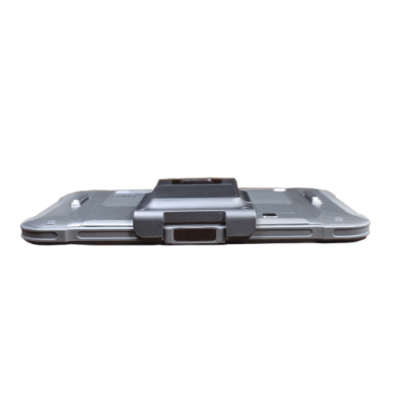

The Inventory Master EDA or PDA UHF RFID Sled Handheld Reader is an android 9.0 rugged tablet. With its powerful Qualcomm CPU, 8 in (20.32 cm) high-definition screen, 8000 mAh battery and comprehensive data capture options like UHF RFID, barcode scanning, HF RFID or NFC Iris and finger print recognition etc. you can find it easy to deploy device a valuable helper to increase productivity in retail, logistics, warehousing, identity verification, meter reading etc. Top of Form
Technical Specifications
| Engine | CM 2000 -1 module based on Impinj Indy R 2000 |
| Frequency | 865 MHz to 868 MHz 920 MHz to 925 MHz 902 MHz to 928 MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Circular polarization (default UHF, 3 dBi; UHF with pistol grip, 4 dBi) |
| Power | 1 W (30 dBm, + 5 dBm to + 30 dBm adjustable) |
| R Or W Range | < 82.02 ft (25 m) (indoors) > 49.21 ft (15 m) (open outdoors, Impinj MR 6 tag); |
| Reading Rate | > 200 tags per s (circular polarization) |
| CPU | Qualcomm 1.8 GHz Octa-core |
| RAM+ROM | 2 GB + 16 GB (Standard) or 3 GB + 32 GB (Upgrade) |
| Expansion | Supports up to 128 GB Micro SD card |
| Operating System | Android 9.0 |
| Operating System | Android 9.0; GMS, Android Enterprise, Zero-Touch, FOTA, Soti Mob iControl, Safe UEM supported |
| SDK | Software Development Kit |
| Language | Java |
| Tool | Eclipse or Android Studio |
| WLAN | IEEE802.11 a/b/g/n/ac, 2.4 G/ 5 G dual-band, internal antenna |
| WWAN(Europe, Asia) | 2 G: B3 / B5 / B8 |
| 3 G: CDMA EVDO: BC0; TD-SCDMA: B 34 / B 39; WCDMA: B 1 /B 5/ B 8 4 G: TDD-LTE: B 38 / B 39 / B 40 / B 41; FDD-LTE: B 1/ B 3 / B 5 / B 7 / B 8 / B 20 | |
| WWAN(America) | 3 G: B 2 / B 4 / B 5 4 G: B 2 / B 4 / B 5 / B 7 / B 12 / B 13 / B 17 / B 28b |
| Bluetooth | Bluetooth 4.2 / 4.1 + HS / 4.0 / 3.0 + HS / 2.1 + EDR |
| GNSS | GPS / AGPS, GLONASS, internal antenna |
| Display | 8 in (20.32 cm) IPS LTPS 1920 x 1200 IPS LTPS 1280 x 800 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Power | Li-ion, rechargeable, 8000 mAh Standby: over 500 hours Continuous use: over 10 hours (depending on user environment) Charging time: 5 hrs. to 7 hrs. (with standard adaptor and USB cable) |
| Expansion Slot | 1 slot for SIM card, 1 slot for SIM or TF card |
| Interfaces | USB 3.0 Type-C, OTG |
| Audio | Speaker, microphones |
| Sensors | Gravity sensor, light sensor, proximity sensor |
| Frequency | 13.56 MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 0.79 in to 1.57 in (20 mm to 40 mm) |
| Dimensions | 9.87 in x 5.98 in x 0.59 in (250.8 mm x 152.0 mm x 15.0 mm) (for standard version) |
| Weight | 24.69 oz. (700 g) (for standard version) |
