Overview

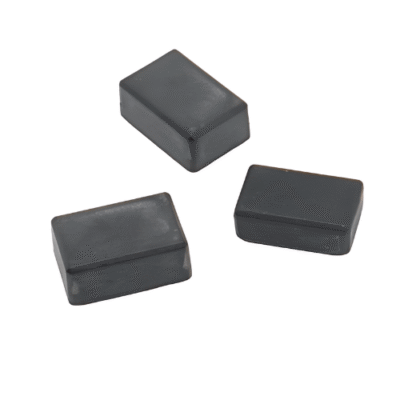

The Inventory Master Rugged RFID uhf Anti Metal Tags is a small form factor and rugged IP68 RFID tag specially designed for metal objects; it is encapsulated while injection molding process to ensure the cavity is truly airtight. Those advantages allow it to be applied to numerous types of high temperature applications, such as coating, heat treatment, molding, painting and many other production processes. The small size could allow it to be embedded installation
Technical Specifications
| Communication Interface | RFID |
| Frequency | 860 MHz to 960 MHz |
| Protocol | EPC Global Class 1 Gen2 ISO18000-6C |
| Special Features | Waterproof |
| IC Type | Impinj R6-P |
| Color | Black by default Customized colors is available |
| Reading Distance | Up to 9.8 ft (3 m) (on metal) |
| Surface Materials | PA6 + GF 30 % |
| Tag Materials | Ceramic |
| Attachment | Industry grade adhesive High performance epoxy resin |
| Environment Compatibility | Optimized on metal |
| Data Retention | 50 Years |
| Polarization | Linear |
| Memory | EPC 128-bit TID 96-bit User 32-bit |
| Certifications | CE approved RoHS approved ATEX or IECEx certified |
| Operating Temperature | -22 °F to 185 °F (-30 °C to +85 °C) |
| Ambient Temperature | -22 °F to 482 °F (-30 °C to 250 °C) |

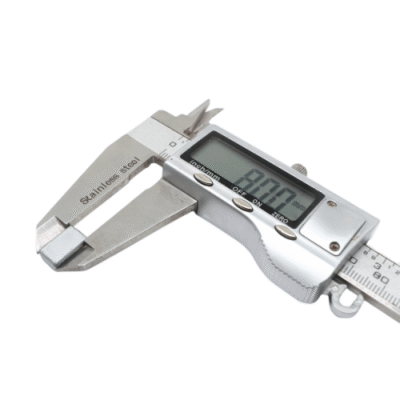

| Dimension | 0.3 in X 0.5 in X 0.2 in (9 mm x 13.5 mm X 6 mm) |
| Weight | 0.06 oz (1.8 g) |
