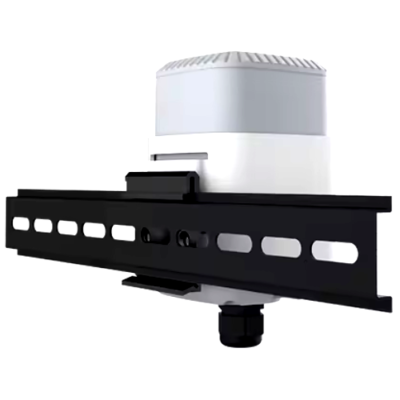

Rugged Wireless Soil Monitoring Sensor – The Inventory Master

Name: Rugged Wireless Soil Monitoring Sensor – The Inventory Master - The Inventory Master
SKU: TIMRLED-174

Discover the Ideal Rugged Solution for Soil Moisture, Temperature, and Conductivity Monitoring in Challenging Environments, with LoRaWAN Technology

SKU: TIMRLED-174 Category: LoRaWAN networks

Technical Specifications

Chipset	LoRa
Frequency Range	862 MHz to 870 MHz
Moisture Range	0% to 100% RH
Ingress Protection	IP66 (Transceiver), IP67 as required
Tx Power	16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz)
Sensitivity	-147 dBm @ 300 bps
Power Supply	19000 mAh Li-SOCL2 battery (ER34615)
Battery Life	4 years (10 min interval, SF12) / >10 years (10 min interval, SF7)
Accuracy	±2% (0% to 50%), ±3% (50% to 100%)
Resolution	0.50%
Cable Length	6.56 ft (2 m)
Mode	OTAA/ABP Class A
Operating Temperature	-22 °F to 158 °F (-30 °C to 70 °C) (Transceiver)
Operating Temperature	-40 °F to 185 °F (-40 °C to 85 °C) (Sensor)
