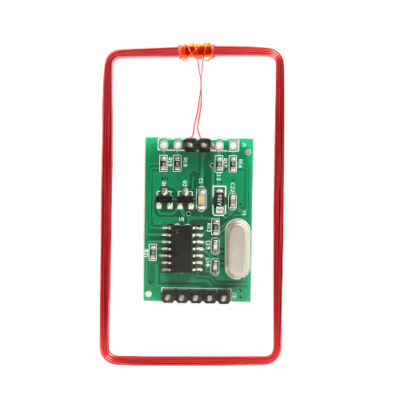

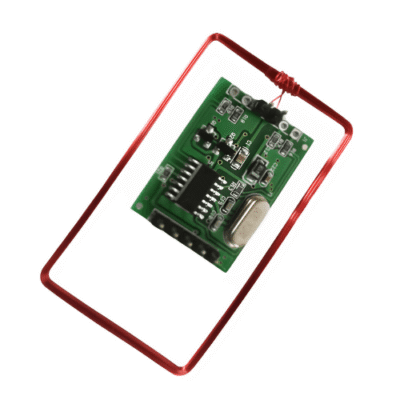

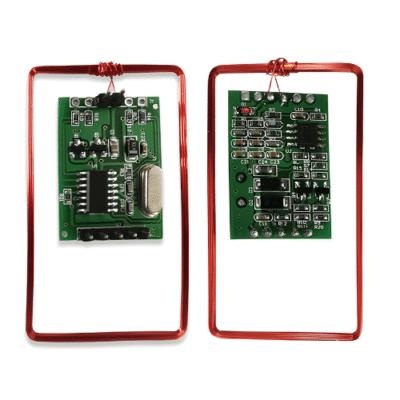

Secure Access 125K RFID Reader ISO 14443A with Wiegand/UART Interface – The Inventory Master

SecureAccess 25KHz frequency, ISO 14443A protocol, Supports Wiegand 26/34 & UART interfaces, Compact in PCB & flexible power supply, ideal for door access control.

SKU: TIMLF-206 Category:

Technical Specifications

Frequency125 KHz
ProtocolISO 14443A
Card Type125 KHz EM4100 or TK4001
InterfaceWiegand 26 or 34 or UART
Read Range0 in to 1.97 in (0 mm to 50 mm)
Reader Interval0.5 S
VoltageDC 3.3 V or 5 V
ApplicationDoor Access Control System
Power SupplyDC 5 V
PCB Size1.20 in x 0.79 in (30.5 mm x 20 mm)
Coil size2.28 in z 1.32 in (58 mm x 33.5 mm)
