Features
- Virtual USB COM interface, micro-USB connector
- Compliant with ISO/IEC14443-4 Type A/B, ISO/IEC15693 international Standard.
- Available working mode of Read/Write or Read UID only;
- Support contactless cards of MIFARE Classic, MIFARE Ultralight/UL C, NFC NTAG tags, I CODE SLI/SLI S, Fujitsu MB89R112A metal tags, etc.
- Support DES/3DES/AES/MAC encryption algorithm, password writing/stored,
- Available to operate MIFARE DESFire EV1 Card’s PICC level, Application ID create/ delete/format, etc.
- Internal LED and BUZ indication for working status
Technical Specifications
| Operation Frequency | 13.56MHz |
| Protocol | ISO 18000-6C |
| Power Supply | DC 5V from USB |
| Power Consumption | Max current:<50mA, Standby current: <1 mA |
| Baud Rate | 9600~115200 bit/s (default 115200bps) |
| Antenna | Internal |
| Reading Range | 1.9685 in to 3.9370 in (5 cm to 10 cm) (depends on antenna and cards) |

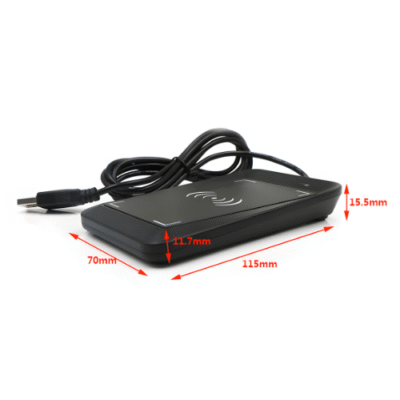

| Dimension | 4.5276 in x 2.7559 in x 0.4724 in(115mmX70mmX12mm) |
| Weight | 1.7637 oz (50g) |
| Operation Temperature | -4 F to 176 F (-20°C to 80°C) |
| Storage Temperature | -40 F to 185 F (-40°C to 85°C) |
| Humidity | Relative humidity 5% to 95% |
