Overview

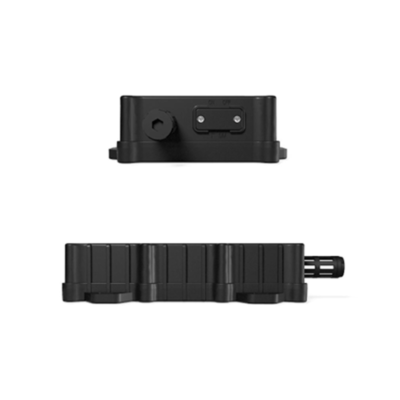

The Inventory Master Smart Bluetooth Gateway with GPS Tracking and Environmental Sensors. This device is designed with a rugged enclosure and IP67 waterproof protection, making it highly durable for industrial and outdoor applications. This device supports extended sensors such as temperature, humidity, CO₂, and VOC, while offering GPS/GNSS positioning as an optional feature. Powered by a 10000mAh rechargeable battery, it ensures long-lasting and reliable performance. It supports independent reporting of sensor data and can connect with other BLE beacons to capture and upload their sensor or advertisement data to the cloud. Additionally, this product can act as a BLE beacon itself and can be managed by a Bluetooth gateway. Users can configure parameters such as NB-IoT/LTE-M network connections, GPS upload intervals, BLE advertisement intervals, scanning functions, and more, with API integration available for client applications. The Bluetooth coverage extends up to 100 meters in open space, depending on the environment. This product supports firmware updates (FOTA) via the cloud or from iOS/Android applications, with a reserved J-Link port for programming. It is compatible with iOS 8.0+, Android 4.3+, and other BLE 4.x/5.0 devices, while cloud connectivity options include MQTT, HTTP, and UDP protocols.
Features
- Solar Charging
- Vehicle GPS location tracking
- Fleet management
- Driver ID detection
- Track assets indoor by Bluetooth Low Engery
- Track assets outdoor by GPS
- Track cargos real-time location
- Monitor temperature and humidity
- Trigger alert when temperature and humidity exceed threshold
- Track transport trucks GPS location
- Detect temperature and humidity in the environment
- Detect environment CO2
- Detect soil pH
- Sim Card Slot
- Sensor
Technical Specifications
| Category | Details |
| Material | ABS or PC |
| Waterproof | IP67 |
| Battery | Rechargeable 10000mAh lithium polymer battery |
| Battery Life | Up to 10 years (lifespan depends on usage) |
| Charge Current | Max 500mA |
| Solar Panel Charge | Max 150mA |
| Protocol | HTTP, HTTPS, MQTT, MQTT SSL, UDP, UDP AES |
| Interface | 1 nano SIM card, Magnetic charging port |
| Sensor | Accelerometer sensor (Default), Geomagnetic sensor (Default), Temperature & Humidity sensor (Optional) |
| Indicator | RGB LED indicator |
| Installation | Screws |
| Work Humidity | 5% to 100% RH |
| Working Temperature | -22 °F to 158 °F (-30 °C to 70 °C) |
| Weight | 14.18 oz (402 g) |
| Size | 5.75 in x 4.33 in x 1.46 in (146 x 110 x 37 mm) |
