Features
- Enabling Multiple Backhaul Connectivities: Supports 8 or 16 LoRa channels and offers versatile backhaul connectivity options, including Wi-Fi, LTE, and Ethernet
- High Reliability and Global Scalability: Full LoRaWAN stack support (V1.0.3), Class A or B or C
- Durable Enclosure: Industrial-grade IP67 enclosure enables rapid deployment in even a challenging environment
- Powerful Performance for Faster Data Processing: MT7628, DDR2 RAM 128 MB Processor
- Ease of Installation: Fully featured and extensible to suit any developer’s needs
- Wide Applications: Outdoor LoRaWAN gateway for Smart Buildings, Smart Agriculture, Smart Industry, Smart Utilities
Technical Specifications
| Chipset | Semtech SX1302+2 x SX1250 |
| Application | Smart Agriculture or City or Logistics or Utilities |
| Power Supply | 12V DC, PoE (IEEE 802.3 af), 40 V to 57 V DC |
| LoRaWAN Working Mode | LoRaWANTM Specification 1.0.3 standard, Class A or B or C |
| Processor | MT7628,DDR2 RAM 128 MB |
| WiFi Characteristics | Frequency 2.4 GHz (802.11b or g or n) RX Sensitivity -95 dBm (Min) TX Power 20 dBm (Max) |
| LoRa Features | Chip Semtech SX1302+2 x SX1250, Number of Channels 8 or 16, Receiving Sensitivity -139dBm @125KHz or SF12, Frequency EU433 or CN470 or EU868 or US915 or AS923 or AU915 or IN865 or KR920 or RU864 |
| Mobile Cellular Network | Support Quectel EC25-E or EC25-AFXD or EC200M-CN EC25-E is suitable for Europe, South Korea, and India -LTE FDD B1 or B3 or B5 or B7 or B8 or B20 -WCDMA B1 or B5 or B8 -GSM or EDGE B3 or B8EC200M-CN is suitable for China -LTE-FDD B1 or B3 or B5 or B8 -LTE-TDD B34 or B38 or B39 or B40 or B41 |
| Power Supply | 12V DC PoE (IEEE 802.3 af), 40 V to 57 V DC |
| Ethernet | RJ45 (10M or 100M) |
| LoRaWAN Working Mode | Supports Class A or B or C |
| Console Interface | USB Type-C |

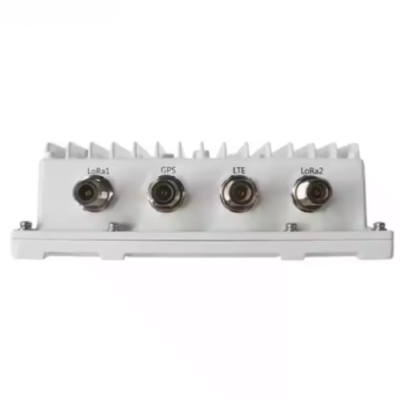

| Antenna Interface | LoRa N Type Connector LTE N Type Connector Wi-F N Type Connector GPS N Type Connector |
| Ingress Protection | IP67 |
| Material | Aluminum |
| Operating Humidity | 10 % RH to 90 % RH |
| Operating Temperature | -40°F to +185°F (-40℃ to +85 ℃) |
| Storage Temperature | -40°F to +185°F (-40℃ to +85 ℃) |
| Dimensions | 7.28 in x 7.28 in x 1.69 in (18.5 cm x 18.5 cm x 4.3 cm) |
| Weight | 6.61 lbs (3 Kg) |
