Overview

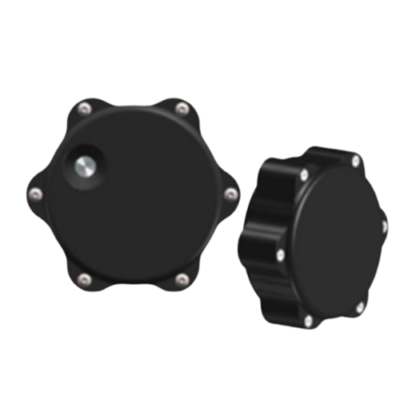

The Inventory Master Smart LoRaWAN Ultrasonic Waste Bin Sensor IP68, Remote Monitor sensor is designed for waste bin (trash bin) status detection. It is integrated with wireless module LoRaWAN. Data is uploaded to cloud server in LoRaWAN standard protocol. It is easy to install the device on different styles of trash bins. With the application software, user can assign the worker’s work plan and route plan, analyze task performance and find out solution to improve. And realize the objective of high efficiency, good environment and low cost finally.
Features
- Trash cans status detection
- Remote monitoring through wireless module, global frequency bands available.
- Inner battery 8500mAh, low power consumption.
- Option for GPS/BEIDOU module.
- IP68 for outdoor using.
- LoRaWAN standard protocol with SDK
- Dashboard monitoring / Email notification / SMS notification (platform related)
- Easy to install, suitable for covered or uncovered trash cans.
Technical Specifications:
| Dimension | 119 × 119 × 40 mm |
| Weight | 280 g |
| Color | Black |
| Material | ABS |
| Principle | Ultrasonic |
| Detection Range | 4 meters |
| Blind Area | 15 cm |
| Height Accuracy | 3 cm |
| Temperature Accuracy | ±2℃ |
| Angle Accuracy | ±2° |
| Wireless Communication | LoRaWAN |
| Optional Frequency | CN470 / IN865 / EU868 / US915 / AU915 / AS923, etc. |
| Working Mode / Activation | Class A / OTAA / MAC1.03 |
| Internal Battery | Non-rechargeable Lithium Thionyl Chloride Battery (ER26500 ×1, 8500mAh @3.6V) |
| Battery Life | > 5 years (4 uploads/day, 10min cycle detection, no GPS) |
| Upgrade / Configuration | TTL, Bluetooth (optional) |
| Temperature Range | -30℃ to 85℃ |
| Protection Level | IP68 |
