Overview

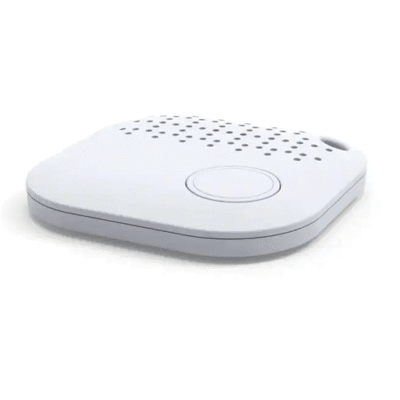

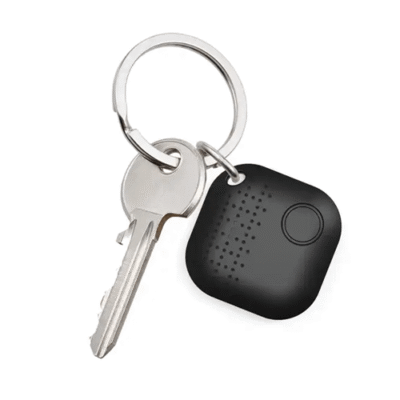

TIMBTB-147 is a Portable Temperature and Humidity Sensor Beacon that supports standard iBeacon and Eddystone (UID, URL, TLM). It is widely used for measuring temperature and humidity in smart homes, indoor tracking, SOS systems, schools, offices, and hospitals.
Features:
- Standard iBeacon, free band of 2.45GHz
- Bluetooth 4.0/5.0 chipset
- The max. 100 meters reading distance with SKU: TIMBTB-147 gateway or any other Bluetooth-based devices (e.g. iPhones, Android smart devices, etc.)
- Built‐in Panic Button design
- Built‐in Temperature and Humidity Sensor
- Ultra‐low power consumption chipset nRF52 series
- Battery Replaceable
Technical Specifications:
| Size | 36mm*36mm*5.6mm |
| Weight | 10g |
| Bluetooth | Bluetooth low energy 4.0/5.0 |
| Frequency | 2.45GHz |
| Support Protocols | Apple iBeacon, Eddystone URL, Eddystone UID, Eddystone TLM |
| Beaconing Interval | Software Configurable 100ms to 10s |
| Transmit power | -40 dBm to +4 dBm |
| Operating / Storage temperature | ‐40°C to 70°C / 10°C to 25°C |
| Humidity | Max 95%, Non condensing, relative humidity |
| Waterproof | IP44 |
| Panic Button | Built‐in |
| Battery Lifetime | >16 Months (Based on Broadcast Interval 1s and TX power 0dBm) |
| Battery Replace‐able | Yes, Button size Battery of CR2032 |
| Temperature Measurement Capability | Measurement Accuracy (‐40°C ~70°C): ±0.5°C |
| Humidity Measurement Capability | Measurement Accuracy (0%RH~90%RH): ±5%RH with 0.05%RH |
| Reading distance | Up to 100 meters |
| Motion Sensor | Optional |
