Overview

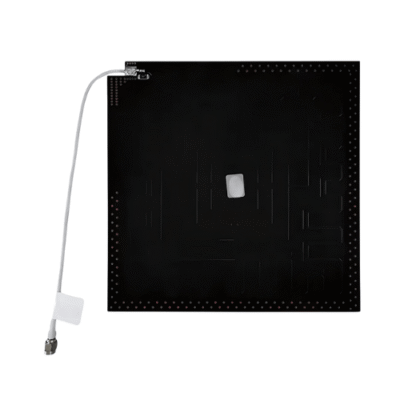

30x30cm 902-928mhz super thin uhf rfid near field antenna is Circular Near Field RFID Antenna, 902 – 928 MHz (US) and 865 – 868 MHz (EU) (region specific), SMA female side fly lead 7.78 in (200 mm / 1 ft.) and cable, operates at 902 – 928MHz. This antenna has opened new possibilities for item level RFID tracking where a short-range read is required. The antenna offers outstanding near field performance in a unique and optimized footprint, improving workflow and eliminating stray tag reads.
Features
- Small Size
- Superior performance
- PCB Material
Technical Specifications
| Frequency | 902 MHz to 928 MHz or 865 MHz to 868 MHz |
| Protocol | ISO 18000-6C |
| Gain | 3 dBi |
| Polarization | Circular |
| VSWR | ≤ 1.5 |
| Connector | SMA Female |
| IP grade | IP 54 |
| Feature | Small Size Superior performance PCB Material |
| Application | Asset management production line management warehouse management |
| Work Temperature | – 40 °F to 140 °F (- 40 ℃ to + 60 ℃) |
| Storage Temp. | – 40 °F to 160 °F (- 40 ℃ to + 80 ℃) |
| Size | 11.81 in x 11.81 in x 0.24 in (300 mm X 300 mm X 6 mm |
| Weight | 0.66 lb (0.3 KG) |
