The Inventory Master 125 KHz And 13.56 MHz Of Dual Low Frequency Reader

Name: The Inventory Master 125 KHz And 13.56 MHz Of Dual Low Frequency Reader - The Inventory Master
SKU: TIMLMOD-207

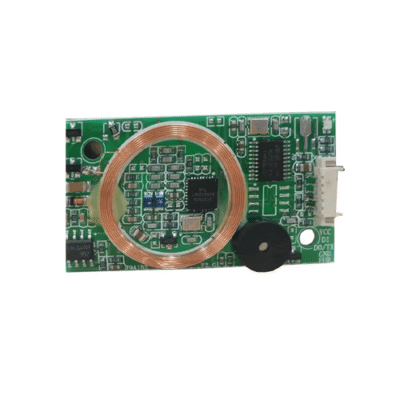

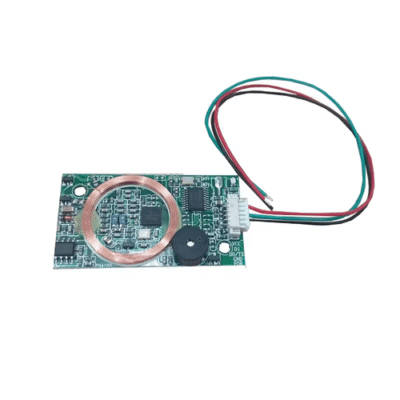

RFID reader module supports 125 KHz and 13.56 MHz, ISO 14443-A, 5 V to 12 V of working voltage, 1.18 in to 3.15 in read range, external antenna.

SKU: TIMLMOD-207 Category: Bluetooth Low Energy (BLE)

Technical Specifications

Frequency	125 KHz and 13.56 MHz
Protocol	ISO 14443-A
Supporting Card	EM 4100 or EM 4102 and S 50 or Desfire or Ultralight Card
Power Supply	5 V and 12 V
Reading Distance	1.18 in to 3.15 in (3 cm to 8 cm)
Antenna	External
Protocol	ISO 14443-A
Working Temperature	−4 °F to 167 °F (-20 °C to 75 °C)
Dimension	1.85 in x 1.02 in x 0.19 in (47 mm x 26 mm x 5 mm)
Weight	0.35 oz (0.01 kg)
