Overview

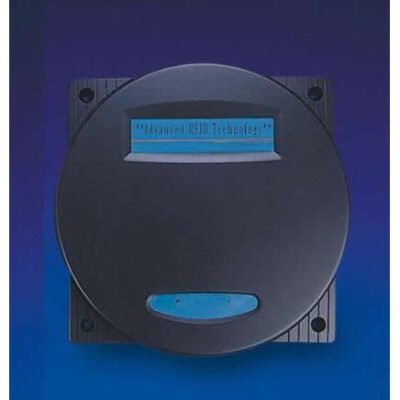

The 125 kHz long range RFID reader provides a read range of up to 60 cm. It can be configured to provide many interface formats including Wiegand, Mag-stripe, RS232 and serial ASCII output and is suitable for applications such as access or parking control. The reader has an auto tuning function to automatically adjust for optimal tag reading.
Key Features
- Relay control
- Auto-tuning function
- Long read range
- Wide voltage range
- Externally programmable interface
- Compact size
Technical Specifications
| Power Requirements | DC 12 V, 350 mA, linear power regulator recommended |
| Interfaces | Wiegand 26 bits, MSR ABA Track2, RS232 (optional version) |
| Read Range | Up to 60 cm with ISO card in ideal conditions |
| RFID Cards Accepted | 125 kHz, 64 bits, Manchester encoding |
| Maximum Power Switched by Internal Relay | Up to 24 V / 2 A |
| Dimensions | 210 mm x 210 mm x 28 mm |
| Nominal Weight | 900 g |
| Interface Cable Length | 90 cm |
| Operating Temperature Range | -10 °C to 60 °C |
