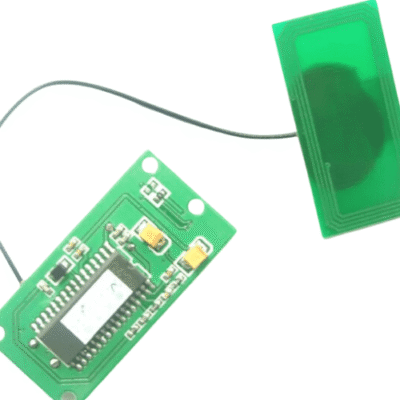

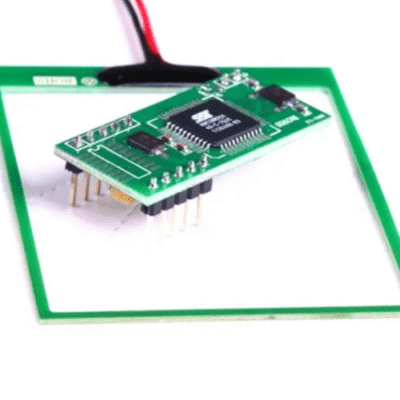

The Inventory Master 13.56 MHz RFID Reader Module With RS 485 Interface Support

Name: The Inventory Master 13.56 MHz RFID Reader Module With RS 485 Interface Support - The Inventory Master
SKU: TIMHMOD-134

Highly compatible RFID reader operating at 13.56 MHz, up to 0.46 ft reading distance, supporting various card types. 3.3 V or 5 V supply.

SKU: TIMHMOD-134 Category: Bluetooth Low Energy (BLE)

Features

Compatible with EM 4100, EM 4200, TK 4100, MIFARE S50, MIFARE S 70, and MIFARE Ultralight
Operates at 13.56 MHz Frequency
Reading distance of 0 ft to 0.46 ft
Power supply of 3.3 V or 5 V
Baud rate of 9600 bits per second

Frequency	13.56 MHz
Baud Rate	9600 bits per second to 115200 bits per second
Standard Protocol	ISO 14443 or IEC 14443 A, ISO or IEC 15693
Supporting Card	MIFARE S 50, S 70 or Ultra-affordable, SR 176, SRIX 4 K, I-Code 2, TI RFID Roofs HF-I
Interface	TTL, RS 232, RS 485
Power Supply	5 V and 3.3 V
Current	< 70 mA
Reading Distance	0 ft to 0.46 ft (0 cm to 14 cm)
Operating Temperature	14 °F to 122 °F (-10 °C to 50 °C)
Storage Temperature	−4 °F to 176 °F (-20 °C to 80 °C)
Antenna	External, various optional specifications
Dimensions	1.54 in x 0.75 in x 0.35 in (39 mm x 19 mm x 9 mm)
