Overview

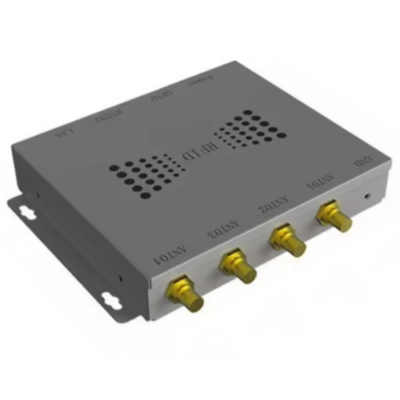

The Inventory Master product is a 4-port reader that complies with ISO18000-6C (EPC C1G2) protocol, is small in size, has stable quality, and supports multi-label reading. There are two modes of online/offline EAS alarm; the device supports network port communication and can expand various communication methods such as WiFi and 4G. It adopts an industrial-grade design, which is non-contact, free from environmental influence, has long reading and writing distance, has good performance in adapting to high-speed movement of objects, is easy to operate, and is anti-shock. The product is compatible with multi-protocol and has good anti-collision ability for multi-label reading, multi-directional label reading, and strong anti-interference ability. The data is more precise.
Technical Specifications
| Frequency Range | 860 MHz to 960 MHz |
| Rf Protocol Standards | ISO 18000-6C (EPC C1 G2) |
| RFID Main Chip | R 2000, self-development chip |
| Identification Method | Radio Frequency Identification (UHF RFID) |
| Read And Write Function | Support multi-tag identification, support tag data filtering, support RSSI sensible signal strength |
| Function | Built-in quad-core Cortex-A9, 1.6 GHz Android 4.4 smart reader platform |
| Communication Interface | Ethernet, RS-232, RS-485, USB, Wi-Fi (Optional), Bluetooth (Optional) |
| Installation Method | Slot-free, bottom routing |
| Power Input | 100 V to 240 V per 50 Hz to 60 Hz |
| Total Power | 9 V to 30 V (Power capacity not less than 30 W) |
| Development Support | SDK development kit |
| SDK Development Kit | JAVA, C# |
| Reading Distance | 0 ft to 164.04 ft (0 m to 50 m) |
| Operating Temperature | -4 °F to 158 °F (-20 ℃ to +70 ℃) |
| Machine Size | 8.48 in x 6.42 in x 1.41 in (215.5 mm x 163 mm x 35.8 mm) |
| Weight | 11.02 lbs (5 Kg) |
