Overview

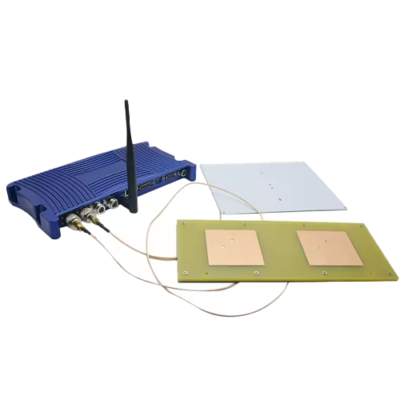

The Inventory Master Arduino 4 Ports UHF Long Range RFID Readerhas SR-RU410B is a high performance UHF RFID fixed reader. Adopt IMPINJ R2000 RFID chip, optimized circuit design and sub-tag access processing algorithms for fast reading and high recognition rate and fast writing, achieving long-distance reading, high recognition rate and fast write processing capability. It can be widely applied in many RFID application systems such as logistics, inventory checking, vehicle or asset or person Management, Medical systems Cold chain management, temperature monitoring, power monitoring, anti-counterfeiting systems and production process control applications.
Features
- Support IE configuration.
Technical Specifications
| Frequency | 840 MHz to 960MHz at option;Fixed or FHSS |
| Protocol | EPC Global UHF Class 1 Gen 2 or ISO 18000-6C |
| Support Tags | Normal RFID tag; Temperature sensor RFID tag; Moisture sensor RFID tag |
| Chip | R2000 |
| RSSI | Support |
| RF Output Power | 30dBm±1dB(MAX) |
| Step Power | 1dBm |
| Signal Width | <250KHz |
| Antenna Port | 4 TNC or N |
| Effective Distance | 10dBi vertical polarized antenna, 30dBm, standard testing tagReading≥131.2ft (40m)Writing≥ 22.9ft (7m) |
| Reading Speed | ≥100tags or s |
| Interface | RS232, RS485, USB, RJ45 (TCP or IP,UDP), WIFI, Weigend 26 or 34 and TriggerBluetooth at option4G at option |
| Operating Voltage | DC 12.0V(+9.0V to +24.0V Voltage Range) |
| Operating Current | ≤1.2A or DC 12V |
| Standby Current | ≤0.1A or DC 12V |
| Keyword | long range rfid reader 164.0ft (50m) |
| SDK | Windows, Linux, Android |
| Working humidity | <95%RH77°F (+25°C) Non-condensing |
| Operating temperature | -4 °F to 131 °F(-20 ºC to +55°C) |
| Storage temperature | -22 °F to 185 °F (-30℃ to +85℃) |
